Images are representations only.

HD2302.0

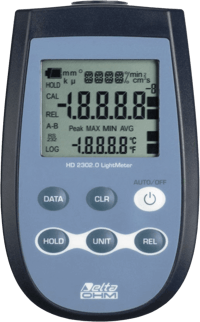

Series: HD2302.0 – Portable Luxmeter Brand: Delta OHM S.R.L.

The kit is supplied with: instrument HD2302.0, 3 1.5V alkaline batteries, operating manual, case. Probes have to be ordered separately.

Price
Request a Quote
Stock
Out of Stock
Request Information


Specifications

Brand

Measured Quantities

  • lux
  • fcd
  • W/m²
  • μW/cm²
  • μmol/(m²s)
  • cd/m²
  • μW/lumen

Batteries

  • Three 1.5 V type AA batteries

Autonomy

  • 200 hours with 1800 mAh alkaline batteries

Power Absorbed with Instrument Off

  • 20 μA

Input for Probes

  • 8-Pole Male DIN 45326 Connector

Working Temperature

  • -5…50° C

Storage Temperature

  • -25…65° C

Working Relative Humidity

  • 0…90 % RH without condensation

Protection Degree

  • IP67

Dimensions (Length x Width x Height)

  • 140 x 88 x 38 mm

Weight

  • 160 g (complete with batteries)

Material

  • ABS

Display

  • 2 x 4-1/2 digits plus symbols Visible area: 52 x 42 mm

Documentation

Datasheet

Manual
