Images are representations only.

HD2307.0

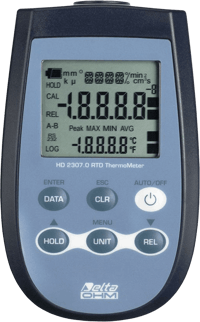

Series: HD2307.0 – Thermometer Pt100 One Input Brand: Delta OHM S.R.L.

The kit consists of instrument HD2307.0, 3 per 1.5V alkaline batteries, instruction manual and case. Probes have to be ordered separately.

Price
Request a Quote
Stock
Out of Stock
Request Information


Specifications

Brand

Pt100/1000 Measurement Range

  • -200 to +650° C

Resolution

  • 0.1° C

Accuracy

  • ± 0.05° C

Drift After 1 Year

  • 0.1° C/year

Unit of Measurement

  • °C
  • °F

Batteries

  • 3 batteries 1.5 V type AA

Autonomy

  • 200 hours with 1800 mAh alkaline batteries

Current Consumption with Instrument Off

  • < 20 μA

Connections

  • DIN 45326 8 poles male connector

Operating Temperature

  • -5° to 50° C

Storage Temperature

  • -25° to 65° C

Working Relative Humidity

  • 0 to 90 %RH, no condensation

Protection Degree

  • IP67

Dimensions (Length x Width x Height)

  • 140 x 88 x 38 mm

Weight

  • 160 g (complete with batteries)

Materials

  • ABS

Display

  • 2 rows 4-1/2 digits plus symbols, Visible area: 52 x 42 mm

Documentation

Datasheet

Operating Manual
