HD2328.0

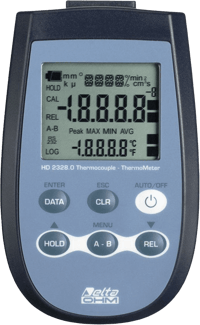

Series: HD2328.0 – Two Inputs Thermocouple Thermometer Brand: Delta OHM S.R.L.

The kit consists of two inputs instrument HD2328.0, 3 per 1.5V alkaline batteries, instruction manual, case. Probes have to be ordered separately.

Price
Request a Quote
Stock
Contact for Availability
Request Information

HD2328.0-two-inputs-thermocouple-thermometer-3.png HD2328.0-two-inputs-thermocouple-thermometer-2.jpg

Specifications

Brand

Measurement of Temperature

  • K: -200° to +1370° C
  • J: -100° to +750° C
  • T: -200° to +400° C
  • E: -200° to +750° C

Resolution

  • 0.1° C

Instrument Accuracy

  • Thermocouple K: ± 0.1° C up to 600° C, ± 0.2° C over 600° C
  • Thermocouple J: ± 0.1° C up to 400° C, ± 0.2° C over 400° C
  • Thermocouple T: ± 0.1° C
  • Thermocouple E: ± 0.1° C up to 300° C, ± 0.2° C over 300° C

Temperature Drift at 20° C

  • 0.02 %/°C

Drift After 1 Year

  • 0.1° C/year

Unit of Measurement

  • °C
  • °F

Batteries

  • 3 Batteries 1.5 V type AA

Autonomy

  • 200 hours with 1800 mAh alkaline batteries

Current Consumption with Instrument Off

  • < 20 μA

Probes Input

  • 2 per 2-Pole female polarized standard miniature connector

Operating Temperature

  • -5° to 50° C

Storage Temperature

  • -25°  to 65° C

Working Relative Humidity

  • 0  to 90 % RH, no condensation

Protection Degree

  • IP67

Dimensions (Length x Width x Height)

  • 140 x 88 x 38 mm

Weight

  • 160 g (complete with batteries)

Materials

  • ABS

Display

  • 2 rows 4-1/2 digits plus symbols, Visible area: 52 x 42 mm

Documentation

Datasheet

Operating Manual
