Images are representations only.

HD2306.0

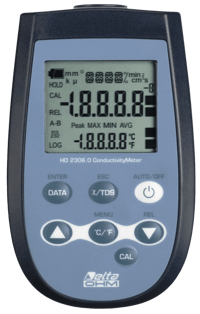

Series: HD2306.0 – Conductivity-Thermometer Brand: Delta OHM S.R.L.

The kit is supplied with instrument HD2306.0, 3 1.5V alkaline batteries, operating manual, case. Conductivity probes, calibration solutions and temperature probes have to ordered separately.

Price
Request a Quote
Stock
Out of Stock
Request Information


Specifications

Brand

Pt100/1000 Measurement Range

  • -200 to +650° C

Resolution

  • 0.1° C

Accuracy

  • ± 0.25° C

Drift After 1 Year

  • 0.1° C/year

Reference Temperature

  • 20° C o 25° C

χ / TDS Conversion Factor

  • 0.4 to 0.8

Preset Cell Constant Values (cm-¹)

  • K=0.1 - K=0.7 - K=1 - K=10

Standard Solutions Automatically Detected at 25° C

  • 147 μS/cm
  • 1413 μS/cm
  • 12880 μS/cm
  • 111800 μS/cm

Measured Quantities

  • χ
  • Ω
  • TDS
  • °C
  • °F

Batteries

  • Three 1.5 V type AA batteries

Autonomy

  • 200 hours with 1800 mAh alkaline batteries

Power Absorbed with Instrument Off

  • < 20 μA

Conductivity Input/Temperature Probes

  • 8-Pole Male DIN 45326 Connector

Operating Temperature

  • -5° to 50° C

Storage Temperature

  • -25° to 65° C

Working Relative Humidity

  • 0 to 90 % RH without condensation

Protection Degree

  • IP67

Dimensions (Length x Width x Height)

  • 140 x 88 x 38 mm

Weight

  • 160 g (complete with batteries)

Materials

  • ABS

Display

  • 2 x 4-1/2 digits plus symbols, Visible area: 52 x 42 mm

Documentation

Datasheet

Operating Manual
