TVL-XS Manual Test Stand
Brand: Kern
Images are representations only.

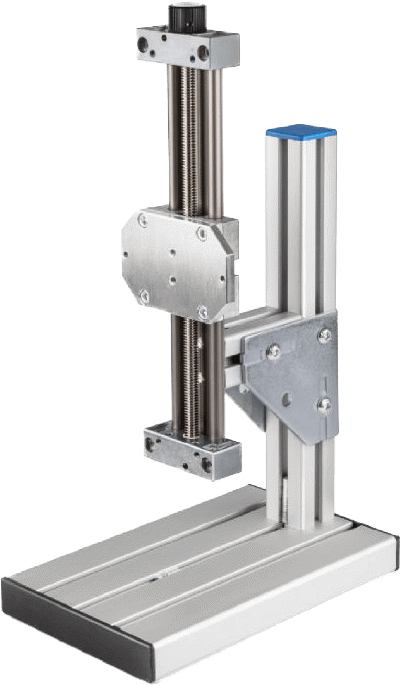

Manual Test Stand, One Guide Column for AE 500-S04, TVL 100FHS71
Price
330,00 € EUR
Stock
In Stock
Manual test bench for precise compressive force measurement in the range up to 100 N.
Features- The redesigned, superfine spindle enables exact testing in a force-measurement range up to 100 N in particularly fine steps and, in conjunction with the fine-dosing crank, ensures safe, reliable operation
- Main areas of application: Testing of low levels of force with short distances, such as, for example, testing keyboard overlays, biological samples (e.g. strength of leaves, etc.), blister packs (e.g. force required to push tablets out, etc.)
- For vertical and horizontal use
- High level of security with repeated measurements
- Large base plate with various holes for fixture mountings
- Suitable for all SAUTER force measuring device up to 100 N (not included with the delivery)
- Travel distance per knob rotation (one stroke): 2 mm
- Overall dimensions W×D×H 300×250×160 mm
- Net weight approx. 4.5 kg
Specifications
Brand
Measuring Capacity (Max)
- 100 N
Documentation
Brochures
- Manual Test Bench SAUTER TVL-XS Brochure (English) pdf 193 KB
- Manual Test Bench SAUTER TVL-XS Brochure (French) pdf 202 KB
- Manual Test Bench SAUTER TVL-XS Brochure (German) pdf 202 KB
- Manual Test Bench SAUTER TVL-XS Brochure (Italian) pdf 194 KB
- Manual Test Bench SAUTER TVL-XS Brochure (Spanish) pdf 196 KB
Manuals
- Instruction Manual Test Bench - SAUTER TVL-XS (English) pdf 276 KB
- Instruction Manual Test Bench - SAUTER TVL-XS (French) pdf 278 KB
- Instruction Manual Test Bench - SAUTER TVL-XS (German) pdf 279 KB
- Instruction Manual Test Bench - SAUTER TVL-XS (Italian) pdf 227 KB
- Instruction Manual Test Bench - SAUTER TVL-XS (Spanish) pdf 278 KB
- Reference Manual KERN Communications Protocol (KCP) pdf 1.8 MB
