KFP Weighing Bridge Platform

Brand: Kern
img-hr-kfp-v30.png img-kvp-v30-M1.png img-kfp-v20-ip67-s.png img-bxs-Unterbau-M1.png img-hr-cat-kfp-ip65.png img-hr-kfp-v20-ip65-detail-sctucture.png
Images are representations only.

KFP Weighing Bridge Platform

Brand: Kern
Request Information
Favorite
Platform KFP-V20 IP65 - Platform with Stainless Steel weighing plate and IP65.

Platform KFP-V20 IP67 - Weighing bridge, screwed, lacquered with IP67.

Platform KFP-V30 - Stainless Steel platform.

Platform KFP-V40 - Stainless Steel platform with IP68 protection.
Features
  • Platform KFP-V20 IP65
    • Stainless Steel weighing plate, Painted steel base
    • 1 load cell, Aluminum, silicone-coated, IP65, OIML-R60-approved, class III, 3000 e
    • Level indicator and levelling feet for precise levelling of the scale, fitted as standard, to give the most accurate weighing result
  • Platform KFP-V20 IP67
    • 4 load cells, steel, silicone-coated, IP67, OIML-R60-approved, class III, 3000 e
    • Can be built in using pit frames (optional)
    • Level indicator and levelling feet for precise levelling of the scale, fitted as standard, to give the most accurate weighing result
    • Easy access to the junction box from the top
    • Comfortable adjustment of the weighing bridge from above
  • Platform KFP-V30
    • Stainless Steel weighing plate
    • Stainless Steel substructure
    • 1 load cell, stainless steel, silicone-coated, IP67, OIML-R60-approved, class III, 3000 e
    • Level indicator and levelling feet for precise levelling of the scale, fitted as standard, to give the most accurate weighing result

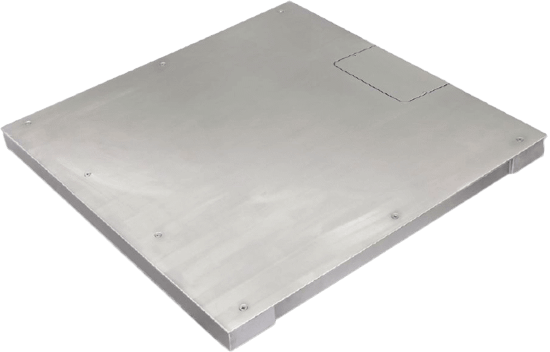

  • Platform KFP-V40
    • Weighing bridge entirely out of stainless steel, extremely resistant to bending because of its high material thickness
    • Weighing plate fixed with stainless steel screws, so that it is easier to access the loadcells from above
    • 4 load cells, stainless steel, encapsulated, IP68, OIML-R60-approved, class III, 3000 e
    • Can be built in using pit frames (optional)
    • Level indicator and levelling feet for precise levelling of the scale, fitted as standard, to give the most accurate weighing result
    • Comfortable adjustment of the weighing bridge from above

Specifications

Brand

Weighing Capacity (Max)

  • 3 - 3000 kg

Readability (d)

  • 0.1 - 1000 g

Verification Value (e)

  • 1 - 1000 g

Minimum Load

  • 20 - 20,000 g

Preload Additive

  • 2 - 10 kg

Weighing Plate

  • 1000 mm x 1000 mm x 80 mm
  • 1500 mm x 1250 mm x 80 mm
  • 1500 mm x 1250 mm x 90 mm
  • 1500 mm x 1500 mm x 80 mm
  • 300 mm x 240 mm x 100 mm
  • 400 mm x 300 mm x 128 mm
  • 500 mm x 400 mm x 110 mm
  • 500 mm x 400 mm x 137 mm
  • 650 mm x 500 mm x 142 mm
  • 650 mm x 500 mm x 135 mm
