SCH11 Series Connection Head

Brand: Status Instruments

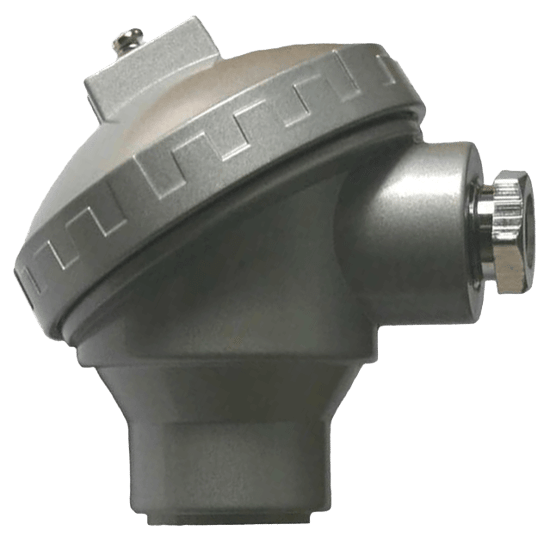

SCH11 Series Connection Head

Brand: Status Instruments
The SCH11 is a general-purpose connection head. Incorporating strength with a lightweight Aluminum construction complete with retaining chain.

It will house our SEM200, 300 and TTR transmitter range as well as connection blocks with a 33 mm mounting.

Cable entry is M20 and Sensor thread is M24. A cable gland is also supplied as standard. Mounting holes are provided for temperature transmitters or connection blocks.

Suitable for use with our range of temperature sensors, we will assemble all the component parts ready for installation into your application.

Specifications

Applications

  • Temperature Sensors

Cable Entry

  • M20 x 1.5
  • M24 x 1.5

Enclosure, Body Material

  • Aluminum Alloy

Environmental Protection

  • IP68

Mounting

  • 33 mm Mounting Holes for Transmitter/Connection Block

Models matching criteria: 2
  • Model - SEM110 Temperature Transmitter
Out of Stock
  • Model - SEM200, 300 & TTR Series
Out of Stock
