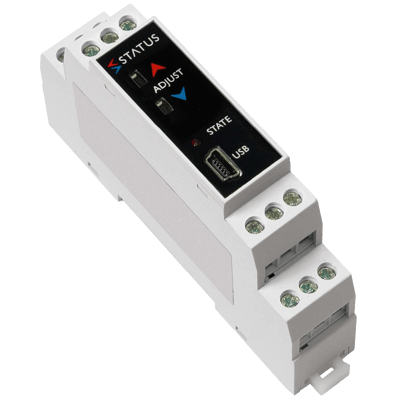

SEM1610 Temperature Transmitter

Brand: Status Instruments
Does not ship to Virginia, United States

The SEM1610 is the next generation DIN rail mounted temperature transmitter from Status Instruments.

It has been designed to accept most common process and temperature sensor inputs and provide the user with a standard two wire (4-20) mA output signal.

Galvanic isolation is provided between input and output and all temperature ranges are linear to temperature.

Designed for ease of use, our latest USB interface is fitted for quick and easy configuration. Just connect a standard USB cable between the SEM1610 and your PC.

Using our free configuration software, your PC will automatically upload the existing configuration data and guide you through any changes you wish to make.

To further help save time, the SEM1610 does not need to be wired to a power supply during the configuration process, it is powered via the USB interface from your PC.

Specifications

Accuracy

  • ± 0.008 mA
  • ± 0.04 mV
  • ± 0.1° C (± 0.18° F) / ± 0.05 % of Reading
  • ± 0.5° C (± 0.9° F) ± 0.1 % of Full Scale Range
  • 0.1 % of Full Scale Range ± 0.5° C (± 0.9° F)
  • Calibration Accuracy: ± 5 µA
  • Loop Ripple: 0.03 % of Full Scale Range

Ambient Temperature Range

  • Operating: -20° to 70° C (-4° to 158° F)

Approvals & Certifications

  • CE Tested to BS EN 61326

Burn-Out

  • Downscale
  • Upscale

Cable Length

  • 0.008 feet (0.0025 Meter)

Communication

  • USB Port

Current

  • Maximum

Display

  • Red LEDs

Enclosure, Body Material

  • Polyamide 6.6

Humidity

  • 10 to 95 % Relative Humidity, Non-Condensing

Input

  • High Range: 20 mA
  • Low Range: 4 mA

Input Impedance

  • 1 Megaohm

Isolation

  • Galvanic Isolation: Input to Output Tested at 500 Vdc
  • Working Galvanic Isolation: 48 Vdc

Mounting

  • DIN Rail Mounting

Output

  • Signal Range: 4-20 mA
  • Supply Ripple Rejection: < ± 5 µA Error at 1 Vrms 50 Hz Ripple

Output Span - Maximum

  • 18 to 22 mA

Output Span - Minimum

  • 3.8 to 6 mA

Response Time

  • < 500 milliseconds to Reach 95 % of Final Value

Sensitivity

  • Supply Ripple Rejection < ± 5 µA Error at 1 Vrms 50 Hz Ripple
  • Supply Sensitivity: 0.05 µA/°C

Sensor Excitation

  • < 450 µA

Sensor, Probe Connection

  • 2-Wire

Sensor, Probe Type

  • E Thermocouple
  • J Thermocouple
  • K Thermocouple
  • N Thermocouple
  • Pt100
  • R Thermocouple
  • S Thermocouple
  • T Thermocouple

Stability

  • ± 0.005 % of Full Scale Range/°C
  • ± 0.01 % of Full Scale Range/°C
  • ± 5 μA/°C

Storage Temperature

  • -40° to 85° C (-40° to 185° F)

Supply Voltage

  • 11-30 Vdc
  • 24 V Nominal Giving, Max.

Temperature Range

  • -200° to 1,760° C (-328° to 3,200° F)

Turn-On Time

  • < 3 seconds
