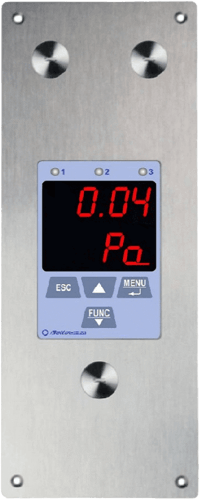

Relative or Differential Low Pressure Transmitter and Data Logger Designed for Wall Flush-Mounting. RS485 Modbus-RTU Output.
Price
Request a Quote
Stock
Contact for Availability
Specifications
Brand
Display and Keyboard
- Red electroluminescent - 4 Keys
Configuration
- Front keys, USB, Ethernet, PC software, RS-485 Modbus
Alarm
- Buzzer, LED, E-mails
Analog Output
- 3 x 0/4-20 mA (active, Max. load 500 Ω)
- 3 x 0 to 5/10 V (min. load 10 kΩ)
- Galvanically Isolated
USB
- HID type with front Mini-USB type B connector
RS-485
- Modbus-RTU Slave
Ethernet
- RJ45 connector
Wi-Fi
- Optional
Protocols
- Proprietary, Modbus-RTU, Modbus TCP/IP, SMTP, FTP, HTTP, NIST
Measuring / Logging Intervals
- 1, 2, 5, 10, 15, 30 seconds
- 1, 2, 5, 10, 15, 30, 60 minutes
Internal Memory
- Circular management or stop logging if memory is full
- Storable samples from 420,940 to 906,640 depending on the number of quantities selected
Power Supply
- 24 Vac / Vdc ± 10 % (Max. 5 W)
Electrical Connections
- Screw terminal block, max. 1.5 mm2
Operating Temperature
- -10° to +50° C
Storage Temperature
- -10° to +70° C
Housing Material
- Stainless Steel (AISI 316 front panel)
Weight
- 640 g approximately
Installation
- Flush-mount
Protection Degree
- IP 65 (front panel)
