HD2102.2

Series: HD2102 – Portable Luxmeter Brand: Delta OHM S.R.L.

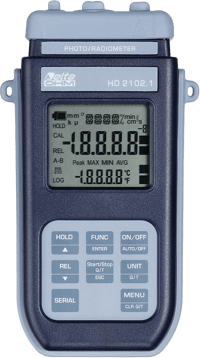

Portable Luxmeter Data Logger

Price
Request a Quote
Stock
Out of Stock
Request Information

Specifications

Brand

Measured Quantities

  • lux - fcd - lux/s - fcd/s - W/m2 - µW/cm2 J/m2 - µJ/cm2 - µmol/(m2 . s) - µmol/m2 - cd/m2 - µW/lumen

Batteries

  • Four 1.5 V type AA batteries

Autonomy

  • 200 hours with 1800 mAh alkaline batteries

Power Absorbed with Instrument Off

  • 20 μA

Mains (SWD10)

  • Output mains adapter 12 Vdc / 1A

Security of Memorized Data

  • Unlimited, independent of battery charge conditions

Measured Values Storage - Model HD2102.2 Type (For Single Probes)

  • 2000 pages containing 19 samples each

Measured Values Storage - Model HD2102.2 Type (For Combined Probes)

  • 2000 pages containing 7 samples each

Measured Values Storage - Model HD2102.2 Quantity (For Single Probes)

  • Total of 38000 samples

Measured Values Storage - Model HD2102.2 Quantity (For Combined Probes)

  • Total of 14000 samples

Measured Values Storage - Model HD2102.2 Selectable Storage Interval

  • 1, 5, 10, 15, 30 s
  • 1, 2, 5, 10, 15, 20, 30 min
  • 1 hour

Serial Interface RS-232C Type

  • RS-232C electrically isolated

Baud Rate

  • can be set from 1200 to 38400 baud

Data bit

  • 8

Parity

  • None

Stop bit

  • 1

Flow Control

  • Xon/Xoff

Serial Cable Length

  • Maximum 15 m

Print Interval

  • 1, 5, 10, 15, 30 s
  • 1, 2, 5, 10, 15, 20, 30 min
  • 1 hour

USB Interface - Model HD2102.2 Type

  • 1.1 - 2.0 electrically isolated

Input Module for the Probes

  • 8-Pole Male DIN 45326 Connector

RS-232 Serial Interface

  • 8-Pole MiniDin Connector

USB Serial Interface

  • B-type MiniUSB connector

Mains Adapter

  • 2-Pole Connector (positive at centre)

Date and Time

  • in real time

Accuracy

  • 1 min/month max drift

Working Temperature

  • -5…50° C

Storage Temperature

  • -25…65° C

Working Relative Humidity

  • 0…90 % RH without condensation

Protection Degree

  • IP66

Dimensions (Length x Width x Height)

  • 185 x 90 x 40 mm

Weight

  • 470 g (complete with batteries)

Material

  • ABS, rubber

Display

  • 2x4-1/2 digits plus symbols
  • Visible area: 52 x 42 mm

Documentation

Datasheet

Manual
