Display Devices

Brand: Kern

Display Devices

Brand: Kern
Display Device KDE-T - Multi functional model, protected by IP65.

Display Device KFB-TM - Display device with large digits - easy to read

Display Device KFN-TM - Stainless Steel weighing device with IP65 protection and superior display size

Display Device KFS-TM - Professional display device with three displays and EC type approval [M]

Display Device KIB-TM - Practical Flip/Flop display device for greatest ease of use

Display Device KXS-TM - Stainless Steel weighing device with IP68 protection and integrated power supply
Features
  • Display Device KDE-T
    • Adjusting program CAL for quick setting of the balance accuracy
    • Display (segments): 6 digits
    • Graduations: 1, 2, 5, 10
    • Data interface RS-232 standard
  • Display Device KFB-TM
    • Adjusting program CAL for quick setting of the balance accuracy
    • Display (segments): 5 + 1/2 digits
    • Resolution verifiable: 6000 e
    • Resolution non verifiable: 30000 d
    • Graduations: 1, 2, 5 ... 10, n
    • Benchtop stand for display device included
    • Wall mount for display device included
    • Data interface RS-232 standard
    • Piece counting with reference
  • Display Device KFN-TM
    • Adjusting program CAL for quick setting of the balance accuracy
    • Display (segments): 5 + 1/2 digits
    • Graduations: 1, 2, 5, 10, n
    • Benchtop stand for display device included
    • Wall mount for display device included
  • Display Device KFS-TM
    • Display (segments): 6 digits
    • EC type approval: ja
    • Resolution verifiable: 3000 e
    • Resolution non verifiable: 60000 d
    • LCD display, digit height 16.5 mm
    • Input voltage: 12 V, 500 mA
    • Permissible ambient temperature 0°C/40°C
    • Watch the KCP information film - https://youtu.be/DsswyuynuBc
  • Display Device KIB-TM
    • Practical Flip/Flop display device: flexible positioning e.g. free-standing or screwed to the wall (optional). By rotating the upper housing shell you can determine the angle of the display as well as the cable outlet (standard configuration ex works: rear outlet), Conversion of the display device, Factory Option, delivery time + 2 working days, KERN KIB-M01, see accessories
    • Industry 4.0: A wide range of (optional) data interfaces means that it is easy to transfer weighing data to tablets, laptops, PCs, networks, Smartphones, printers, etc.
    • Dosage aid controlled through the display. Only possible through data interface RS-232, other interfaces on request.
    • Display (segments): 6 digits
    • Resolution verifiable: 6000 e
    • Resolution non verifiable: 60000 d
    • Weighing units: PCS, oz, g, lb, kg, tJ, HJ
    • Graduations: 1, 2, 5, 10, n
    • Reference quantity: 5, 10, 20, 25, 50, 100
    • Linearisation: 3 points
    • Input voltage: 12 V DC, 1000 mA
    • Permissible ambient temperature -10°C/40°C
    • Dimensions housing W×D×H 260×115×70 mm
    • Net weight approximately 0.8 kg
    • Possibilities for interfaces:
      • RS-232 (standard)
      • LAN or USB-for-USB-stick (export alibi data) or WLAN or Bluetooth or USB-for-PC
      • Traffic light
    • Dosage aid controlled through the display
    • Watch the KCP information film - https://youtu.be/DsswyuynuBc

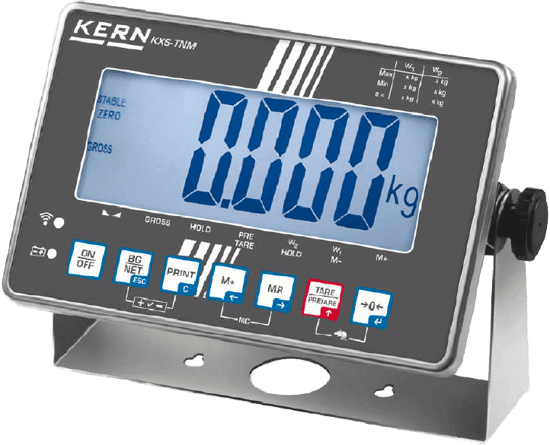

  • Display Device KXS-TM
    • Adjusting program CAL for quick setting of the balance accuracy
    • Piece counting: Reference quantities selectable. Display can be switched from piece to weight
    • Display (segments): 6 digits
    • Graduations: 1, 2, 5, 10, 50
    • Benchtop stand for display device included
    • Wall mount for display device included

Specifications

Brand

Casing Material

  • Stainless Steel, Plastic

Dimensions Housing (W×D×H)

  • 232 mm x 170 mm x 80 mm
  • 260 mm x 115 mm x 70 mm
  • 250 mm x 160 mm x 65 mm
  • 265.5 mm x 164.5 mm x 96 mm
  • 225 mm x 110 mm x 45 mm

Dimensions of Display Device (W×D×H)

  • 232 mm x 150 mm x 80 mm
  • 260 mm x 115 mm x 70 mm
  • 260 mm x 150 mm x 65 mm
  • 266 mm x 165 mm x 96 mm

Wall Mount

  • Yes

Charging Time

  • 3 h, 10 h, 12 h

Input Voltage

  • 220-240 Vac 50 Hz
  • 100 V-240 Vac 50/60 Hz 0.400 Amax
  • 110 V - 230 Vac

Mains Adapter/Adapter Included

  • UK EURO CH AUS US

Operating Time (Backlight Off)

  • 15 h, 18 h, 35 h, 43 h, 80 h

Operating Time (Backlight On)

  • 8 h, 10 h, 20 h, 26 h, 40 h

Environmental Conditions

  • Maximum Operating Temperature: 35 - 40° C
  • Minimum Ambient Temperature: -10° C - 5° C

Models matching criteria: 7
Display Device view more
  • Plastic; Indicator of the DE-D/A Series
  • Resolution (Non Verifiable): 20,000 d
Out of Stock
Display Device view more
  • Plastic for BFB-A/D/DM, CP 50-3P3, CW KFB, IFB
  • Resolution (Non Verifiable): 30,000 d
  • Resolution (Verifiable): 6000 e
  • Verification Class : III
Out of Stock
Display Device view more
  • Stainless Steel for BFA-/BFN-/NBB-/NFN-/SFB-/TB
  • Resolution (Non Verifiable): 30,000 d
  • Resolution (Verifiable): 6000 e
  • Verification Class: III
Out of Stock
Display Device view more
  • Plastic for BFS 1.5T0.5S, BFS-M, BFS-N, IFS 100
  • Resolution (Non Verifiable): 60,000 d
  • Resolution (Verifiable): 3000 e
  • Verification Class: III
Out of Stock
Touch Screen Display view more
  • Plastic for BFD, IFT
  • Resolution (Non Verifiable): 30,000 d
Out of Stock
Display Device view more
  • Plastic for BID-/IOC-/UID-M, BID-D, TBID-A, TIO
  • Resolution (Non Verifiable): 60,000 d
  • Resolution (Verifiable): 6000 e
  • Verification Class: III
Out of Stock
Display Device view more
  • Stainless Steel for BKN 1T-4M, BKN 1T-4SM, BKN
  • Verification Class: III
Out of Stock
