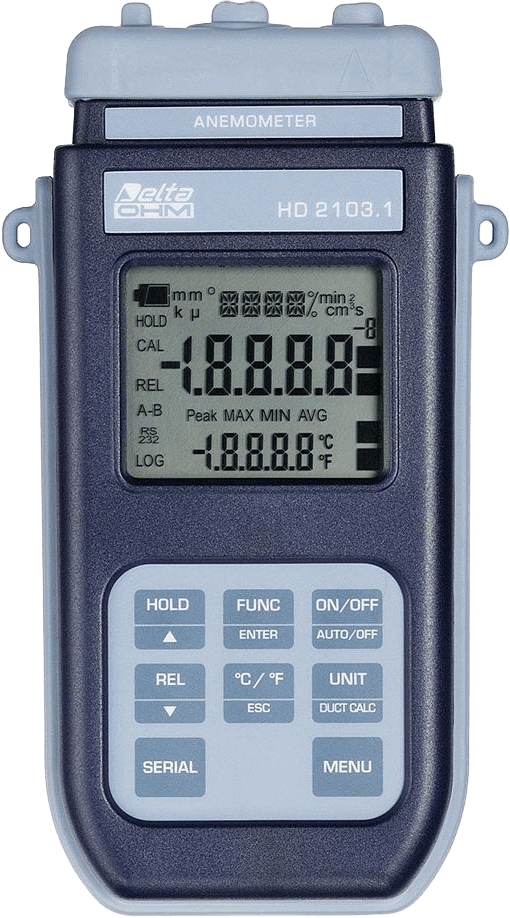

HD2103 – Anemometer-Thermometer
Brand: Delta OHM S.R.L.
Images are representations only.
HD2103 – Anemometer-Thermometer
Brand: Delta OHM S.R.L.Anemometer-Thermometer which use hot-wire or vane probes to measure air speed, flow rate, and temperature inside pipelines and vents (for temperature Pt100 sensor with SICRAM module).
It is designed for use in the fields of air conditioning, heating, ventilation and environmental comfort.
Storage of maximum, minimum, average value, RS232C output for data transfer in real time to a PC or printer. Functions: REL, HOLD and auto power off which can be disabled, IP 66 protection degree.
Complete with carrying case, instruction manual, 4 batteries, Software DeltaLog9.
The air speed probes, the temperature probes, cable for data downloading have to be ordered separately. TP47 series temperature probes are suitable.
Available as well with datalogging function HD2103.2.
Specifications
Brand
Dimensions (Length x Width x Height)
- 185 x 90 x 40 mm
Weight
- 470 g (complete with batteries)
Materials
- ABS, rubber
Display
- 2x4-1/2 digits plus symbols
- Visible area: 52 x 42 mm
Operating Temperature
- -5…50° C
Storage Temperature
- -25…65° C
Working Relative Humidity
- 0…90 %RH without condensation
Protection Degree
- IP66
Batteries
- Four 1.5 V type AA batteries
Autonomy
- 200 hours with 1800 mAh alkaline batteries
Power Absorbed with Instrument Off
- 20 μA
Mains
- Output mains adapter 12 Vdc / 1000 mA
Measuring Units
- °C - °F - m/s - km/h - ft/min - mph - knot - l/s - m³ /s - m³ /min - m³ /h - ft3 /s - ft3 /min WCT
Security Data Stored
- Unlimited, independent of battery charge conditions
Date and Time
- In real time
Accuracy
- 1 min/month max drift
Measured Values Storage - Model HD2103.2 Type
- 2000 pages containing 19 samples each
Quantity
- Total of 38000 samples
Storage Interval
- 1,5,10,15,30 s,
- 1,2,5,10,15,20,30 min
- 1-Hour
Serial Interface RS-232C Type
- RS-232C electrically isolated
Baud Rate
- Can be set from 1200 to 38400 baud
Data bit
- 8
Parity
- None
Stop bit
- Xon/Xoff
Serial Cable Length
- Maximum 15 m
Print Interval
- Immediate or 1,5,10,15,30 s,
- 1,2,5,10,15,20,30 min
- 1-Hour
USB Interface - Model HD2103.2 Type
- 1.1 - 2.0 electrically isolated
Input Module for the Probes
- 8-Pole Male DIN 45326 Connector
Serial Interface
- 8-Pole MiniDin Connector
USB Interface
- Mini USB type B
Mains Adapter
- 2-Pole Connector (positive at centre)
Pt100 Measurement Range
- -200…+650° C
Pt1000 Measurement Range
- -200…+650° C
Resolution
- 0.1° C
Drift After 1 Year
- 0.1° C/year
