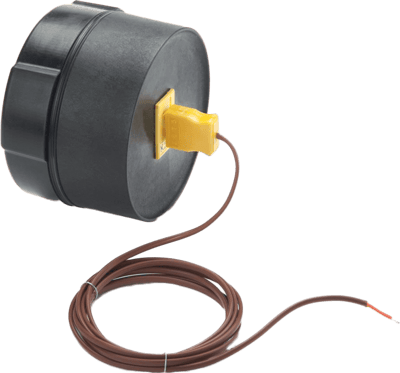

High Temperature Process Logger
Brand: Dickson
The HT350 is Dickson’s answer to food processing monitoring. HACCP approved, interchangeable immersion probes, and a large temperature range: it makes keeping your food safe much, much easier.
Features- Customizable K-Thermocouple Probe
- Robust HACCP Approved Exterior
- USB Download
- DicksonWare Compatible
- Large Temperature Range
- IP Rating: 67
- Logger Not Meant to be Submerged While Monitoring
Specifications
Brand
Approvals
- CE
Average Battery Life
- 9 Months at 1 Minute Sample Rate, Ambient Temperature
Cable Details
- USB - Male Series A Plug to 5 Pin Male Series B Mini Plug
Calibration Options
- N100
- N300
- N400
- N520
Channels
- CH1: Temperature
Data Capacity
- 32,512 Sample Points
Dimensions with Flat Cap
- 2.1” x 3.0” DIA / 5.4 x 7.7 cm
Dimensions with Handled Cap
- 2.75” x 3.0” DIA / 7.0 x 7.7 cm
Download Time
- Approximately 1 Minute
Download Type
- USB
Enclosure
- FDA Compliant Glass Filled PBT
IP Rating
- 67
- Probe can be completely submerged in material. Logger can not. Logger will function properly during spray down and cleaning.
Included Accessories
- Tadiran Battery and Quick Start Guide
- Software not Included
PC Requirements
- Microsoft Windows® XP, Vista or 7 - not compatible with Windows® 8.1 or 10
- 2GB RAM
- 1 free USB Port
- CD drive for software installation - can be provided digitally
Power Source
- High Energy Lithium Tadiran Battery 2/3 AA - User Replaceable TLH-5955
Response Time
- 15 Minutes to move 63 % of Full Scale
Sample Interval
- User Selectable: from 1 second to 24 hour intervals, in 1 second increments
Software Options
- A016
- A026
Temperature Accuracy
- ± 1.8° F from -22.0° to 122.0° F or ± 1.0° C from -30.0° to 50.0° C
Remainder of Range Temperature Accuracy
- ± 3.8° F, ± 2.1° C
Temperature Range
- -40.0° to 257.0° F / -40.0° to 125.0° C
Temperature Range Note
- Probe Temperature Range = -300° to 2000° F / -184° to 1093° C
- Standard Bead Wire: Max. 500° F
Temperature Sensor Type
- K-Thermocouple
Unit Weight
- .75 lb / 12 oz.
Units per Package
- 1
Warranty
- 12-Month Limited
