STA206 Temperature Transmitter

Brand: Status Instruments

Request Information Favorite

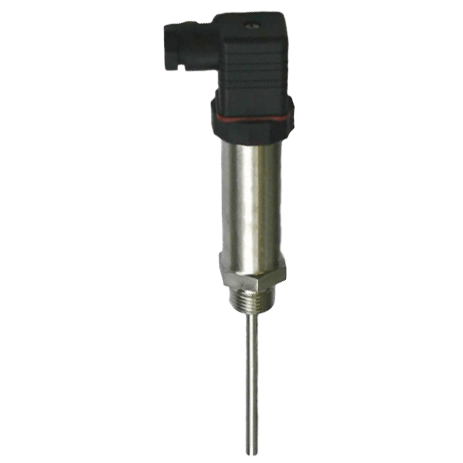

The STA206 is a cost effective sensor and transmitter assembly housed in a 316 Stainless Steel body with an integral Pt100 sensor, transmitter and DIN connector.

The integrated temperature transmitter is based around our SEM206P.

PC configuration allows the user to select Range, units and Burnout direction, without requiring calibration equipment.

Configuration is performed quickly using our USB port driven configurator by simply connecting two clips to the STA206 loop terminals and following the software instructions.

Calibration set up may be saved as a file on the PC for later use.

The STA206 incorporates the latest digital technology to ensure accurate drift free performance.

Specifications

Brand

Status Instruments

Accuracy

0.2° C (0.36° F) ± 0.05 % of Reading Plus Sensor Error

Approvals & Certifications

EMC BS EN 61326

BSP Connection

1/2” BSP Male

Communication

Digital Technology

Configuration

USB Port

Current

< 200 μA - Excitation Current

Enclosure, Body Material

316 Stainless Steel

Length

50 to 150 mm - Immersion Length

Linearization

BS EN 60751 (IEC 751)

Operating Temperature

-50° to 200° C (-58° to 392° F)

Output

< 3.9 mA - Min. Output (In Low Burn-Out Condition)
21.5 mA - Max.
2-Wire Current Loop
4-20 mA

Output Load

(Vsupply-10) / 21 kiloohms, Max.

Power Supply

10-30 Vdc

Response Time

1 second + Sensor Lag

Sensor Protection

Burn-Out

Sensor, Probe Connection

DIN Connector Screw Terminal

Sensor, Probe Type

Pt100 Class A

Span - Minimum

25° C (77° F)

Thermal Drift

0.0025 %/°C

Turn-On Time

4 seconds (Output < 4 mA During Start Up)

Update Time

1 Minute to Full Accuracy - Warm-Up
500 milliseconds

Documentation

Data Sheets

Data Sheet - Status STA206 Temperature Transmitter pdf 146 KB
