SU/SW Sound Level Meter and Accessories

Brand: Kern

Images are representations only.

SU/SW Sound Level Meter and Accessories

Brand: Kern

Request Information

Sound Level Meter SU - Professional sound level meter.

Sound Level Meter SW - Professional sound level meters of class I and class II in premium quality.

Features

Sound Level Meter SU
- Professional sound level meter for measuring noise in areas such as, for example, the environment, mechanical applications, car industry and much more
- Measures the sound intensity in the workplace
- Helps in differentiating between normal noise influences, and excessive noise, e. g. in a production hall
- Data interface RS-232
- Delivered in a hard carrying case
- Multi measuring functions:
  - Lp: Standard sound level measuring function
  - Leq: Energy equivalent sound level measuring mode (type A)
  - Ln: Shows the deviation from a pre-defined limit in %
- Selectable methods of evaluation:
  - A: As sensitive as the human ear
  - C: Sensitive for noisier environmental conditions, where there are machines, plant, motors etc.
  - F: For areas where sound intensity does not vary
- Function to set limits: Programmable target value for go/no-go test values
- TRACK function for continuous recording of variable environmental conditions
- Peak Hold Mode to capture peaks
- Internal memory for measured values, for 30 measurements. Can be displayed on the PC

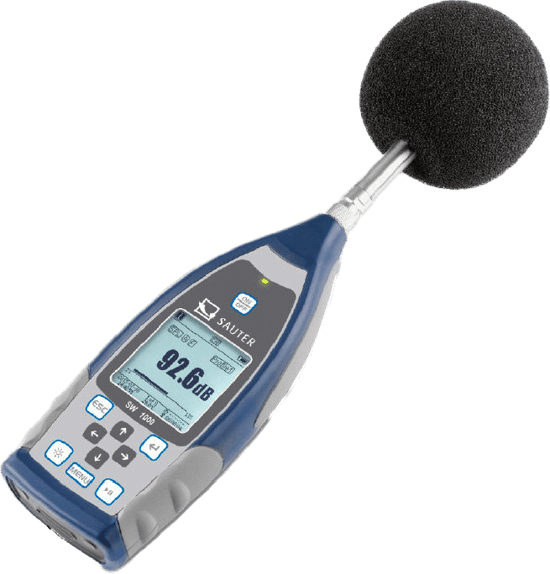

Sound Level Meter SW
- Data logging function with date and time in the device and data transfer using MicroSD (4 GB) memory card (included with delivery), RS-232 or USB
- Different sound pressure levels can be selected, such as, for example, Laeq, LcPeak, LaF, LaFMax, LaFMin, SD, SEL, E
- Ideal for measurements for workplaces which are outdoors, e.g. at airports, on building sites, in road construction etc. with broad access to spectrum thanks to the highly-accurate 24-Bit A/D converter
- Floating point evaluation for higher level of accuracy and better stability
- The optimised analogue frontend switch reduces the ambient noise and increases the linear measuring range
- A specially-developed algorithm permits a compliant dynamic range of more than 120 dB! (SW 1000: > 123 dB; SW 2000: > 122 dB)
- Three profiles and 14 user-defined measurements can be calculated in parallel with different frequency and time weighting
- LN statistics and display of the graph showing the progression of time
- User-defined integral interval measurement up to a maximum of 24 hours is possible
- Frequency weighting (filter) A, B, C, Z
- Time interval during measurement: F (fast), S (slow), I (pulse)
- Freely-definable limits for the output of an optical alarm signal
- Peak Hold Mode to capture peaks
- Octavo function for targeted sound analysis
- TRACK function with graphic display of a measurement
- Calibration mode (with optional calibrator)
- Trigger mode: Analogue signal to switch the device on or off with 3.5 mm plug
- Automatic measurement for timer function is possible: 10, 5, 2 Hz
- Operating languages: German, English, French, Spanish, Portuguese
- Delivered in a hard carrying case
- Option of fitting a column on the rear of the housing, ¼" thread

Specifications

Brand

Kern

Type

Lp A Lp C Lp F

Measuring Capacity (Max)

30-130 dB
20-134 dB
35-130 dB
25-136 dB

Readability (d)

0.1 dB

Accuracy Class

1 or 2

Frequency Range

0.003-20 kHz
0.02-12.5 kHz

Sensitivity

40 or 50 m V/Pa

Draft Shield Construction

Dimensions Housing (W x D x H): 90 mm x 90 mm x 90 mm
Material: Plastic
Overall Dimensions Mounted (W x D x H): 90 mm x 90 mm x 90 mm

Memory Card Construction

Dimensions Housing (W x D x H): 32 mm x 24 mm x 1 mm
Material: Plastic

Documentation

Brochures

Certifications

Communication Protocols

Manuals

MSDS

MSDS Report - 1.5V Carbon Zinc-Manganese Dioxide Dry Battery pdf 688 KB

Technical Datasheets
