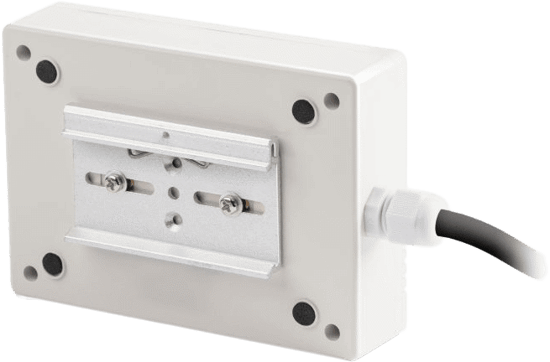

YKV Digital Weighing Transmitter and Bracket for DIN Rail

Brand: Kern
Images are representations only.

YKV Digital Weighing Transmitter and Bracket for DIN Rail

Brand: Kern
Request Information
Favorite
Modern, digital weighing transmitter for fast acquisition of weighing data and forwarding to a wide variety of output media such as tablets, networks, PLC controls etc. - ideal for operating balances in plants or conveyor systems
Features
  • With this A/D converter box your weighing processes are ready for the requirements of Industry 4.0. Simply connect a weighing platform or measuring cell, integrate the A/D converter box into the network and start weighing
  • For rapid transfer of weighing data to connected networks, computers, etc.
  • USB- and RS-232 Data interface standard
  • Transfer formats are freely configurable
  • Many interface variants available:
    • WLAN interface, KERN YKV-A01
    • Bluetooth data interface, KERN YKV-A02
    • Other interfaces on request
    • A/D converter box with Ethernet data interface as standard on request
  • functions: Weighing, Tare off
  • Internal Resolution 16 million divisions
  • Measuring frequency 10 Hz
  • Easy configuration using the software supplied
  • Robust plastic die-cast housing
  • Suitable for wall mounting and DIN track mount
  • Compatible with all KERN weighing platforms
  • Included in the scope of supply:
    • A/D converter box KERN YKV-01
    • Software Balance Connection for adjusting and managing the KERN YKV-01, for large-format display of the values collected on the PC as well as transfer of this data to other apps and programs
  • Only KERN YKV-02: Ethernet interface standard

Specifications

Brand

Construction

  • Dimensions Housing (WxDxH): 100 mm x 140 mm x 35/36 mm
  • Dimensions of Display Device (WxDxH): 100 mm x 140 mm x 35/36 mm

Services (Optional)

  • Adjustment at the Location of Installation: On request

Power Supply

  • Battery: No Battery
  • Input Voltage: 100 V - 240 V 50/60 Hz
  • Mains Adapter/Adapter Included: EURO UK US

Functions

  • PRE-TARE Function: Yes

Measuring System

  • Adjustment Options: External Calibration
  • Number of Weighing Ranges: 1
  • Resolution (Non Verifiable): 60000
  • Weighing Units: g t kg

Environmental Conditions

  • Maximum Operating Temperature: 40° C
  • Minimum Ambient Temperature: -20° C - -10° C
