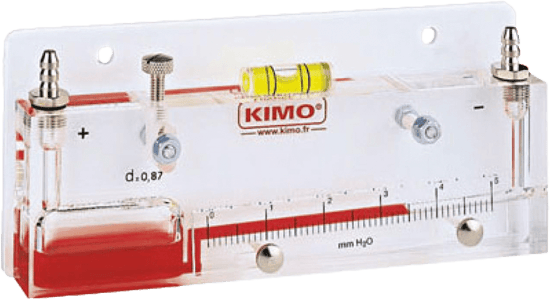

HP Series Inclined Liquid Column Manometers
Brand: Sauermann GroupKimo's HP range of inclined liquid column manometers are recommended for measuring overpressures in clean rooms, operating blocks, laboratories, aseptic rooms, laminar flows etc.
Features- High measurement sensitivity
- Very low pressure ranges
- Zero adjustment by moving the slide strip
- Integrated spirit level for adjusting horizontality
- Comes with a white PVC support, two screws and two rawlplugs, two 487 connectors and a bottle of AWS.10 liquid
Specifications
Brand
HP 5 Differential Pressure
- 0-5 mmCE
- 0-50 Pa
HP 10 Differential Pressure
- 0-10 mmCE
- 0-100 Pa
HP 15 Differential Pressure
- 0-15 mmCE
- 0-150 Pa
Parameters
- Differential pressure
Manometer Type
- Inclined liquid column manometer
Manometric Liquid
- AWS 10 red oil, density 0.87 at 15° C
Maximum Static Pressure
- 6 bars
