STH-42 Counter

Brand: SIMEX sp. z o.o.

STH-42 Counter

Brand: SIMEX sp. z o.o.

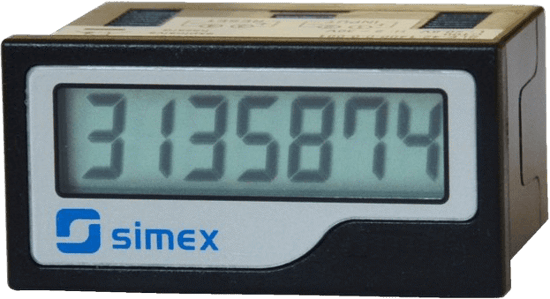

The STH-42 series is a self-powered LCD hourmeter in a small form.

With a panel size of DIN 48 x 24 mm, it is perfect for limited space installations.

It is powered by a replaceable lithium battery that lasts approximately 7 years, no external power required.

The STH-42 series is available in 7 digits with 8 mm height figures with remote reset.

Input signal includes dry contact, open collector, voltage, wide range voltage, with max. resolution 1 count per 1/10 hour.

The front panel protection is IP54 and wiring connection is easily done via the terminal block connector, making it secure and reliable.
Features
  • Up-down Hour Meter
  • Self-powered - Lithium Battery
  • 7 Years Battery Lifetime
  • Input: Dry Contact / OC / Voltage
  • Remote Reset
  • Small Panel Size DIN 48 x 24 mm

Specifications

Number of Inputs

  • 1

Input Type

  • Voltage: V
  • Contact / Open Collector / Voltage - NPN

Input Levels

  • Dry contact/OC/NPN: low 0.8 V, high 2...30 V, wide-range voltage input: low 0...10 Vac/dc, high 20...250 Vac/dc

Input Frequency

  • Maximum 30 Hz (dry contact / Open Collector / NPN) or Maximum 20 Hz (wide-range voltage input

Output Type

  • No Output

Measurement Method

  • Electrical
  • Pulse

Tryb Pracy

  • Adding

Power Supply

  • 3.6 V 1/2AA Lithium Battery

Display

  • LCD
  • 7 x 8 mm

Communication Interface

  • No Interface

Operating Temperature

  • -10...+55° C

Protection Class

  • IP 54: Front

Mounting

  • Panel

Case Dimensions

  • 48 x 24 x 42,4 mm

Models matching criteria: 2
Input: Dry Contact/OC/NPN
Out of Stock
Input: Wide Range Voltage
Out of Stock
