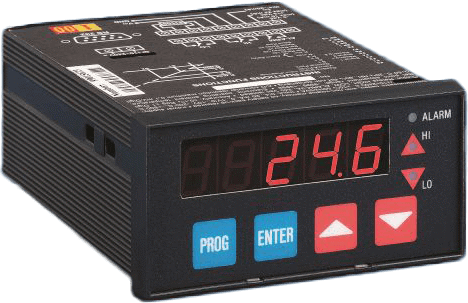

HD9022 – Microprocessor Panel Indicator and Regulator
Brand: Delta OHM S.R.L.
Images are representations only.
HD9022 – Microprocessor Panel Indicator and Regulator
Brand: Delta OHM S.R.L.Microprocessor panel indicator and regulator 48 x 96, with thresholds that can be programmed and configured by the user.
Resolution of the A/D converter: 0.1mV/digit – 2µA/digit.
Input 0…20mA, 4…20mA, 0…1V, 0…10V, 4-wire Pt100 input. One relay for output 1, one relay for output 2, one maximum and minimum alarm relay. Serial output RS232 C.
Power supply 24Vac/dc, on request 110…230Vac/dc.
- Typical applications are the display of signals sent by transmitters which may concern temperature, humidity, pressure, speed, capacity, level, force, etc., for the most varied industrial sectors, operating machines and automated systems.
