SEM206TC Temperature Transmitter

Brand: Status Instruments

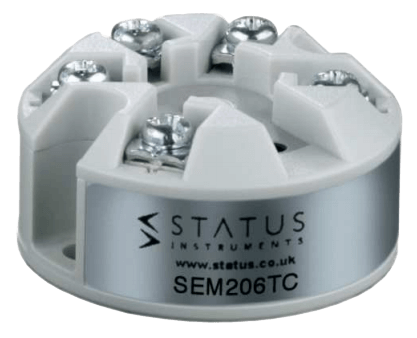

Status Temperature Transmitter, SEM206TC
Images are representations only.

SEM206TC Temperature Transmitter

Brand: Status Instruments
Favorite
The SEM206TC is a cost effective “smart” in head transmitter that accepts thermocouple temperature sensors and converts sensor output over a configured range to a standard industrial 4-20 mA transmission signal.

PC configuration allows the user to select TC type, Range, units and Burnout direction, without requiring calibration equipment.

Configuration is performed quickly using a our new USB port driven configurator by simply connecting two clips to the SEM206TC loop terminals and following the software instructions.

Calibration set up may be saved as a file on the PC for later use.

The SEM206TC in head transmitter incorporates the latest digital technology to ensure accurate drift free performance.

If required the desired range can be specified at the time of order, removing the need for user configuration.

If the range is not specified then the transmitter will be shipped with the default range of 0° to 1,000° C type K.

Specifications

Brand

Accuracy

  • (mA Output/2,000) or 5 µA whichever is greater
  • ± 0.1 % of Reading/°C, Typically for -40° to -20° C (-40° to 68° F) & 70° to 85° C (158° to 185° F)
  • Cold Junction: -40° to 85° C (-40° to 185° F) ± 0.5° C (± 0.9° F) Tracking ± 0.05° C/°C
  • mV Range (-10° to 70° C): ± 0.02 % of Full Scale at 20° C (68° F)
  • Thermocouple K, J, E, N, R, S (-200° to 1,370° C): ± 0.1 % of Full Scale ± 0.5° C (± 0.9° F, Plus Any Sensor Error) at 20° C (68° F)
  • Thermocouple T (-200° to 400° C): ± 0.2 % of Full Scale ± 0.5° C (± 0.9° F, Plus Any Sensor Error) at 20° C (68° F)

Approvals & Certifications

  • EMC - BS EN 61326
  • IEC 61000-4-2, 61000-4-3, 61000-4-4, 61000-4-5

Burn-Out

  • Sensor Burn-Out: Downscale
  • Sensor Burn-Out: Up Scale

Configuration

  • USB

Humidity

  • Ambient Humidity: 10 to 90 % Relative Humidity, Non-Condensing

Isolation

  • Tested to 250 Vdc

Operating Temperature

  • Ambient Operating Range: -40° to 85° C (-40° to 185° F)

Output

  • 21.5 mA - Max.
  • 2-Wire 4-20 mA
  • 3.8 mA Min. (In Low Burn-Out Condition)
  • 4-20 mA

Power Supply

  • 12-30 Vdc

Power Supply Effect

  • Loop Voltage Effect: ± 0.2 μA/V

Range

  • -10 to 70 mV

Response Time

  • 1 second

Sensor, Probe Connection

  • 2-Wire
  • Screw Terminal

Sensor, Probe Type

  • E Thermocouple
  • J Thermocouple
  • K Thermocouple
  • N Thermocouple
  • R Thermocouple
  • S Thermocouple
  • T Thermocouple

Stability

  • ± 0.1° C/°C at Span
  • ± 0.15° C/°C at Zero

Storage Temperature

  • Ambient Storage Temperature: -50° to 90° C (-58° to 194° F)

System Requirements

  • Windows® XP

Temperature Range

  • Sensor: -200° to 1,760° C (-328° to 3,200° F)

Thermal Drift

  • ± 2 μA/°C

Turn-On Time

  • Within 8 seconds (Output < 4 mA During Start Up)

Update Time

  • 500 milliseconds
  • Warm-Up Time: 1 Minute to Full Accuracy
