SGZ-12 Isolator
Brand: SIMEX sp. z o.o.
Images are representations only.

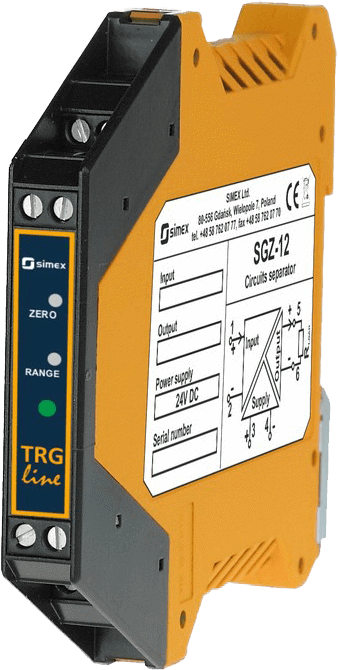

SGZ-12 Isolator
Brand: SIMEX sp. z o.o.SGZ-12 type isolators are dedicated for making a galvanic isolation between input measuring circuit and output circuit.
The device needs 24V DC of power supply. Input, output and supply circuits are mutually isolated.
The using of isolators allows to reduce the impact of interference and ground potential difference.
It also helps to put together different types of signals: 0÷5 mA, 0÷20 mA, 4÷20 mA, 0÷5V, 0÷10V, 1÷5V.
User is allowed to correct zero point and measuring range, using two potentiometers mounted on the front panel of housing.
Features- Two-wire Circuits Isolator
- Free Input and Output Standard
- Additional 24V DC Supply To Power Two-wire Transmitters
- Full Galvanic Isolation Between Input/Output/Supply Circuits
- 1 Track
- 12.5 mm Case
- TS-35 Din Rail Mounting
- 24V DC Power Supply
Specifications
Brand
Number of Inputs
- 1
Input Type
- Free Standard
Number of Outputs
- 1
Output Type
- Free Standard
Galvanic Isolation
- 2kV, 50 Hz
- Between All Circuits
Load Resistance
- 0...700 Ω (0/4...20 mA)
- 0...3kΩ (0…5 mA)
- ≥ 2kΩ (voltage signal)
Power Supply
- 21...28 Vdc
Protection Class
- IP 20
Operating Temperature
- -20...+60° C
Mounting
- DIN Rail
Case Dimensions
- 12.5 x 99 x 114.5 mm
Case Material
- Plastic
