SWS-W510 BCD/RS-485 Meter
Brand: SIMEX sp. z o.o.
Images are representations only.

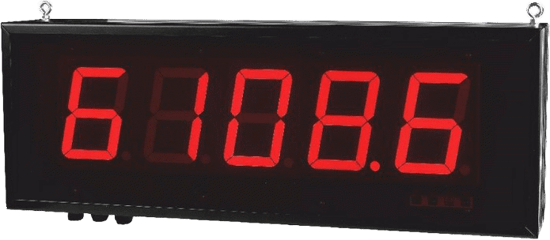

SWS-W510 BCD/RS-485 Meter
Brand: SIMEX sp. z o.o.The SWS-W510 is a simple digital panel indicator intended for displaying any numerical values and characters defined by user - in SLAVE mode only, sent from the master device over the RS 485 serial interface link.
The displayed value may be collected from other device - in MASTER mode.
The display brightness can be adjusted in 8 steps.
The device has 4 buttons being used for main presets programming.
To get high protection level, the keyboard is mounted under transparent cover.
To allow user to change presets without opening the cover, an IR sensor is mounted.
Remote controller keyboard is equivalent to the device keyboard.
Modbus RTU protocol is used to communication with device.
It is possible to order device with other communication protocol using RS-485 interface: special order required.
The indicator can be configured with IR remote controller, local keyboard or free S-Config software via the RS-485 communication port.
Features- Large-size Indicator
- 100 mm LED Display
- RS-485 / Modbus RTU
- MASTER / SLAVE Selected from the Menu
- Possibility of Displaying Mnemonic Messages
- Display Brightness Adjustable in 8 Steps
- All Parameters are Freely Programmable with Remote Controller or Free Configuration Software S-Config
Specifications
Brand
Input Type
- No Input
Output Type
- No Output
Power Supply
- 16...35 Vac, 19...50 Vdc
- 85..260 Vac/dc
- 19...50 Vdc
Display
- LED
- 5 x 100 mm
- Red
Communication Interface
- RS-485 / Modbus RTU
Transmission Parameters
- 1200...115200 bit/s
- 8N1 / 8N2
Operating Temperature
- 0...+50° C
- -20…+50° C
Protection Class
- IP 30
Case Material
- Aluminium
- Methyl Polimethacrylate - PMMA
Mounting
- Wall
Case Dimensions
- 578 x 208 x 102 mm
