OZP Stereo Zoom & Digital Microscope

Brand: Kern
ozp-558_mit_odc_82_83.png img-hr-ozp-a.png img-hr-ozp-b1.png
Images are representations only.

OZP Stereo Zoom & Digital Microscope

Brand: Kern
Request Information
Favorite
Stereo Zoom Microscope OZP-5 - Professional and powerful thanks to its extremely large magnification range, strong illumination and first-class optics.

Digital Microscope Set OZP-S - Professional and powerful thanks to its extremely large magnification range, strong illumination and first-class optics in a digital combination
Features
  • Stereo Zoom Microscope OZP-5
    • The KERN OZP stereo zoom microscope stands out through its above-average magnification range and its robust shape which is also ergonomic, it enables effortless, simple working over a period of several hours
    • The KERN OZP-5 series is available as a strong, continuously adjustable 3 W LED incident and transmitted light variant for the very best illumination of your sample or as a variant without illumination
    • With its large working distance, an extra large field of view and its brilliant resolution, the KERN provides sharp, high-contrast, colour-true images.
    • The extremely large, continuously adjustable magnification range from 6 to 55 times magnification means that you can work quickly and effectively
    • There is a choice of one binocular model as well as one trinocular model for connecting a camera for documentation purposes and for quality reports.
    • The pillar stand is particularly flexible due to its variable and sturdy adjustment mechanism and therefore enables ergonomic working procedures
    • A large selection of eyepieces, (universal) stands, a darkfield kit, external illumination units as well as auxiliary objectives and more are available as accessories
    • A protective dust cover, eye cups, as well as multi-lingual user instructions are included in the scope of the delivery
    • A C-mount adapter is required to connect a camera to the trinocular version

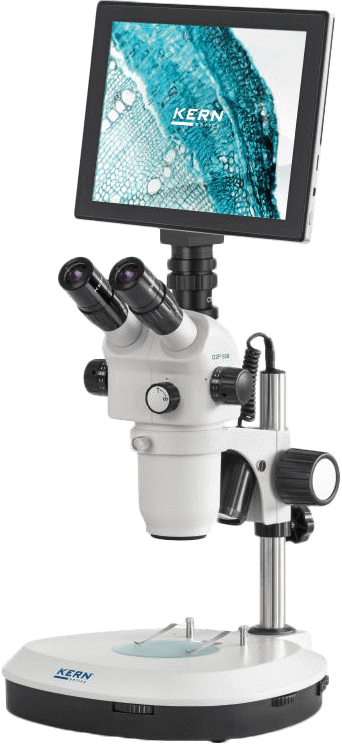

  • Digital Microscope Set OZP-S
    • The professional OZP range is now also available to you as a comprehensive digital solution for your live investigations. Optionally available with an adapted tablet or C-mount camera. Naturally, the appropriate C-mount adapter is included with the delivery
    • The KERN OZP stereo zoom microscope stands out through its above-average magnification range and its robust shape which is also ergonomic, it enables effortless, simple working over a period of several hours
    • The extraordinarily strong and continuously dimmable 3W LED incident and transmitted illumination ensures a flexible and particularly good level of illumination for your sample
    • With its large working distance, an extra large field of view and its brilliant resolution, the KERN OZP-S provides sharp, high-contrast, colour-true images.
    • The adapted C-mount camera is available in different versions and can be used anywhere
    • For detailed information on the individual components, see the relevant product description of the individual item
    • A large selection of eyepieces, external illumination units as well as auxiliary objectives are available as accessories
    • A protective dust cover, eye cups, as well as multi-lingual user instructions are included in the scope of the delivery

Specifications

Brand

Optical System

  • Greenough Optics
  • Brightness Adjustable (Separate)
  • Dioptre Compensation both Sides

Lens Barrel

  • 35° Tilt

Magnification Ratio

  • 9.2:1

Light Distribution

  • 50:50

Eye Distance

  • 52.0 - 76.0 mm

Overall Dimensions W×D×H

  • 330 mm x 285 mm x 470 mm

Net Weight

  • Approximately 4.6816 kg

Tube

  • Binocular
  • Trinocular

Eyepiece

  • HSWF 10x Ø 23.0 mm
  • HWF 10 x 20 mm

Field of View

  • Ø 38.3 mm - 4.2 mm

Objective Zoom

  • 0.6x - 5.5x

Stand

  • Pillar

Illumination

  • 3 W LED (Transmitted Light), 3 W LED (Reflected Light)

Included Camera

  • ODC 825, ODC 832, ODC 241

Resolution

  • 5 MP

Interface

  • USB 2.0 (6.8 - 55 FPS)
  • USB 3.0 (14.2 - 101.2 FPS)

Sensor

  • CMOS 1/2.5"

  • Scope of Application
    • Zoology and Botany, Quality Control, Electronics and Semiconductor Industry, Assembly and Repair
  • Applications/Samples
    • Samples with Focus on Three-Dimensional, Zoom with Variable Magnification (Depth, Thickness), e.g. Insects, Seeds, Circuit Boards, Components
