X20 System Coated

Brand: B&R Industrial Automation Inc

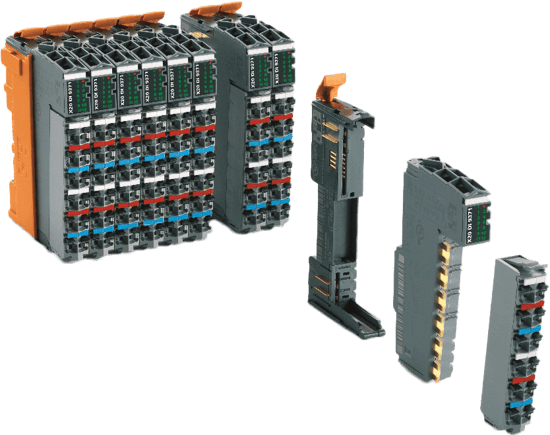

X20 System Coated

Brand: B&R Industrial Automation Inc
With the X20c series, B&R is setting new standards for protection against harsh environmental conditions.

This variant of the modular X20 distributed controller and I/O product line is protected against condensation and corrosive gases by a coating on the electronics module.

The modules are suitable for use even in adverse atmospheric conditions.

The coating on the electronics module protects the components and circuit board from the effects of condensation and corrosive gases.

The effectiveness of protection against condensation is checked using the test specified in BMW GS 95011-4, and protection against corrosive gases using the 4-part corrosive gas tests specified in EN 60068-2-60, test method 4.

The tests are completed both in the company testing lab, which is accredited in accordance with EN ISO/IEC 17025:2007, and at certified external testing facilities.

There, the products undergo further testing to check their durability – even beyond standard requirements.

The X20 family with coated circuit boards is completely compatible with existing X20 models with respect to functionality.

Using a unique module ID, the application software can differentiate these devices from standard models.

With the introduction of this line, B&R has proven for the third time in rapid succession – after the general expansion of the operating temperature range to -25 to +60°C and certification for maritime applications from Germanischer Lloyd (GL) – that they are dedicated to increasing their customers' return on investment by increasing the service life of the X20 system regardless of environmental conditions.
Features
  • Modules with Special Coating
  • Corrosive Gas Test with H2S, NO2, Cl2, SO2
  • Ambient Temperature -25 to 60°C
  • Protection Against High Humidity and Condensation

Models matching criteria: 117
POWERLINK/Ethernet connection cable, RJ45 to RJ45, 20 m
Out of Stock
POWERLINK/Ethernet connection cable, RJ45 to RJ45, 30 m
Out of Stock
POWERLINK/Ethernet connection cable, RJ45 to RJ45, can be used in cable drag chains, 15 m
Out of Stock
POWERLINK/Ethernet connection cable, RJ45 to RJ45, can be used in cable drag chains, 20 m
Out of Stock
POWERLINK/Ethernet connection cable, RJ45 to M12, 2 m
Out of Stock
POWERLINK/Ethernet connection cable, RJ45 to M12, 5 m
Out of Stock
X20 Compact-S bus base, for Compact-S PLC and Compact-S PLC power supply module, base for integrated RS232 interface, slot for X20 interface module, X20 connection, X20 end cover plates (left and right) X20AC0SL1/X20AC0SR1 included
Out of Stock
X20 Compact-S bus base, for Compact-S PLC and Compact-S PLC power supply module, base for integrated RS232 and CAN bus interface, slot for X20 interface module, X20 connection, X20 end cover plates (left and right) X20AC0SL1/X20AC0SR1 included
Out of Stock
X20 Compact-S bus base, for Compact-S PLC and Compact-S PLC power supply module, base for integrated RS232 interface, 2 slots for X20 interface modules, X20 connection, X20 end cover plates (left and right) X20AC0SL1/X20AC0SR1 included
Out of Stock
X20 Compact-S bus base, for Compact-S PLC and Compact-S PLC power supply module, base for integrated RS232 and CAN bus interface, 2 slots for X20 interface modules, X20 connection, X20 end cover plates (left and right) X20AC0SL1/X20AC0SR1 included
Out of Stock
X20 PLC, with integrated I/O, x86-200, 128 MB DDR3 RAM, 16 kB FRAM, 1 GB onboard flash drive, 1 insert slot for X20 interface modules, 2 USB interfaces, 1 RS232 interface, 1 CAN bus interface, 1 POWERLINK interface, 1 Ethernet interface 10/100BASE-T, 14 digital inputs, 24 VDC, sink, 4 digital inputs, 2 µs, 24 VDC, sink, 4 digital outputs, 24 VDC, 0.5 A, source, 4 digital outputs, 2 µs, 24 VDC, 0.2 A, 4 digital inputs/outputs, 24 VDC, 0.5 A, 2 analog inputs ±10 V or 0 to 20 mA / 4 to 20 mA, 1 Pt1000 instead of an analog input, includes power supply module, 3x terminal block X20TB1F, slot cover and X20 end cover plate X20AC0SR1 (right) included
Out of Stock
X20 PLC, with integrated I/O, x86-200, 128 MB DDR3 RAM, 16 kB FRAM, 1 GB onboard flash drive, 1 insert slot for X20 interface modules, 2 USB interfaces, 1 RS232 interface, 1 CAN bus interface, 1 POWERLINK interface, 1 Ethernet interface 10/100BASE-T, reACTION Technology, 14 digital inputs, 24 VDC, sink, 4 digital inputs, 2 µs, 24 VDC, sink, 4 digital outputs, 24 VDC, 0.5 A, source, 4 digital outputs, 2 µs, 24 VDC, 0.2 A, 4 digital inputs/outputs, 24 VDC, 0.5 A, 2 analog inputs ±10 V or 0 to 20 mA / 4 to 20 mA, 1 Pt1000 instead of an analog input, includes power supply module, 3x terminal block X20TB1F, slot cover and X20 end cover plate X20AC0SR1 (right) included
Out of Stock
X20 PLC, with integrated I/O, x86-400, 256 MB DDR3 RAM, 32 kB FRAM, 2 GB onboard flash drive, 1 insert slot for X20 interface modules, 2 USB interfaces, 1 RS232 interface, 1 CAN bus interface, 1 POWERLINK interface, 1 Ethernet interface 10/100BASE-T, 14 digital inputs, 24 VDC, sink, 4 digital inputs, 2 µs, 24 VDC, sink, 4 digital outputs, 24 VDC, 0.5 A, source, 4 digital outputs, 2 µs, 24 VDC, 0.2 A, 4 digital inputs/outputs, 24 VDC, 0.5 A, 2 analog inputs ±10 V or 0 to 20 mA / 4 to 20 mA, 1 Pt1000 instead of an analog input, includes power supply module, 3x terminal block X20TB1F, slot cover and X20 end cover plate X20AC0SR1 (right) included
Out of Stock
X20 Embedded PLC, Atom 0.8 GHz, 768 MB DDR4 RAM, 64 kB FRAM, 1 GB onboard flash drive, 2 USB interfaces, 1 RS485 interface, 1 POWERLINK interface, 1 Ethernet interface 10/100BASE-T
Out of Stock
X20 PLC, Atom 0.8 GHz, 512 MB DDR4 RAM, 1 MB SRAM, 1 GB onboard flash drive, removable application memory: CompactFlash, 1 insert slot for X20 interface modules, 2 USB interfaces, 1 RS232 interface, 1 Ethernet interface (TSN) 10/100/1000BASE-T, 1 POWERLINK interface module, including supply module. 1x terminal block X20TB12, slot cover and X20 end cover plate X20AC0SR1 (right) included. Order CompactFlash separately!
Out of Stock
X20 PLC, Atom 0.8 GHz, 512 MB DDR4 RAM, 1 MB SRAM, 1 GB onboard flash drive, removable application memory: CompactFlash, 3 insert slots for X20 interface modules, 2 USB interfaces, 1 RS232 interface, 1 Ethernet interface (TSN) 10/100/1000BASE-T, 1 POWERLINK interface module, including supply module. 1x terminal block X20TB12, slot covers and X20 end cover plate X20AC0SR1 (right) included. Order CompactFlash separately!
Out of Stock
X20 slide-in labels for X20 plain text tags, paper, white, perforated, 88 strips on A4 sheets, 100 sheets per package
Out of Stock
X20 terminal locking clip and tag holder for plain text tag
Out of Stock
X20 plain text tag
Out of Stock
X20 end cover plate, left
Out of Stock
X20 shielding bracket 66 mm 10 pcs.
Out of Stock
X20 cable shield grounding clamp, package of 100 pcs.
Out of Stock
X20 shield connection clamp 3 to 8 mm, 10 pieces
Out of Stock
X20 shield connection clamp 5 to 20 mm, 10 pieces
Out of Stock
X20 shield connection clamp 20 to 35 mm, 10 pieces
Out of Stock
X20 tag labels, blank, orange, complete for 16 modules
Out of Stock
X20 tag labels, labeled, red, complete for 16 modules, package of 10 pcs., label: +24 V
Out of Stock
X20 tag labels, labeled, blue, complete for 16 modules, package of 10 pcs., label: GND
Out of Stock
X20 tag labels, labeled, orange, complete for 16 modules, label: module (module 1-16), terminal (1-192)
Out of Stock
X20 labeling tool, for X20 tag label system
Out of Stock
POWERLINK/Ethernet connection cable, RJ45 to RJ45, 0.4 m
Out of Stock
POWERLINK/Ethernet connection cable, RJ45 to RJ45, 0.5 m
Out of Stock
POWERLINK/Ethernet connection cable, RJ45 to RJ45, 1.5 m
Out of Stock
POWERLINK/Ethernet connection cable, RJ45 to RJ45, 2 m
Out of Stock
POWERLINK/Ethernet connection cable, RJ45 to RJ45, 5 m
Out of Stock
POWERLINK/Ethernet connection cable, RJ45 to RJ45, 10 m
Out of Stock
X2X Link attachment cable, open-ended on one side, 1 m
Out of Stock
X2X Link attachment cable, open-ended on one side, 20 m
Out of Stock
X2X Link connection cable, 10 m
Out of Stock
Cable for custom assembly, 100 m
Out of Stock
