Counting System CCS

Brand: Kern
img-hr-cfs-80mm-with-draught-guard.png img-ccs-M3.png
Images are representations only.

Counting System CCS

Brand: Kern
Request Information
Favorite

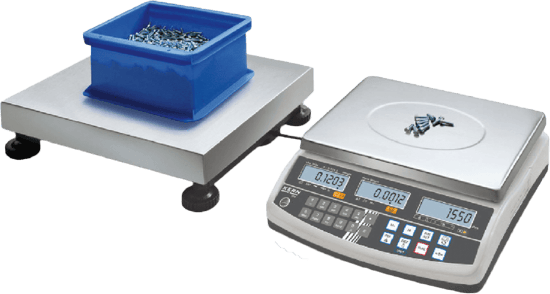

Counting system to count the smallest parts in the largest quantities, counting resolution up to 999,999 points.

With this highly-accurate counting system KERN CCS you can replace a large spectrum of individual counting scales

Reference Scale KERN CFS

This professional KERN CFS counting scale, which can also be used as a stand-alone scale, meets the highest demands for accuracy, weighing range and volume of items, by being connected to a high-capacity weighing bridge
  • Programmable using numerical key pad:
    • Required Reference Quantity
    • -Known Reference Weight
  • Three displays for total weight, piece weight, total quantity
  • Memory (PLU) for 100 items with additional text, reference weight and tare weight, e.g. of a container
  • Audible Fill-to-target: target quantity or target weight can be programmed. When the target value is reached, a signal will sound
  • Precise counting: The automatic reference weight optimisation of reference weight gradually improves the average piece weight value
Quantity Scale KERN KFP

The high-accuracy quantity counting takes place on the weighing platform (= weighing bridge) KERN CCS. In this way even the smallest of parts can be counted in large volumes
  • Stainless steel platform, painted steel base
  • Aluminum single point load cell (1×3000 e), protection against dust and water splashes IP65
  • delivery for models with [Max] ≥ 600kg: 5 working days (Freight forwarder)
  • Protective working cover included with delivery
  • Watch the product film for CCS - https://youtu.be/eku8v7h2fAo
  • Watch the KCP information film - https://youtu.be/DsswyuynuBc

Specifications

Brand

Weighing Capacity (Max)

  • 6 - 300 kg

Weighing Plate Dimension

  • 230 mm x 230 mm x 100 mm
  • 400 mm x 300 mm x 120 mm
  • 300 mm x 240 mm x 110 mm
  • 400 mm x 300 mm x 128 mm
  • 500 mm x 400 mm x 137 mm
  • 500 mm x 400 mm x 135 mm
  • 650 mm x 500 mm x 142 mm
  • 1500 mm x 1250 mm x 80 mm
  • 840 mm x 1190 mm x 80 mm
  • 1000 mm x 1000 mm x 108 mm
  • 1200 mm x 1500 mm x 108 mm
  • 1500 mm x 1500 mm x 108 mm

Weighing Range

  • 0.3 - 6 kg

Readability (d)

  • 0.001 - 0.1 g

Minimum Piece Weight (Normal)

  • 0.05 - 1 g/piece
