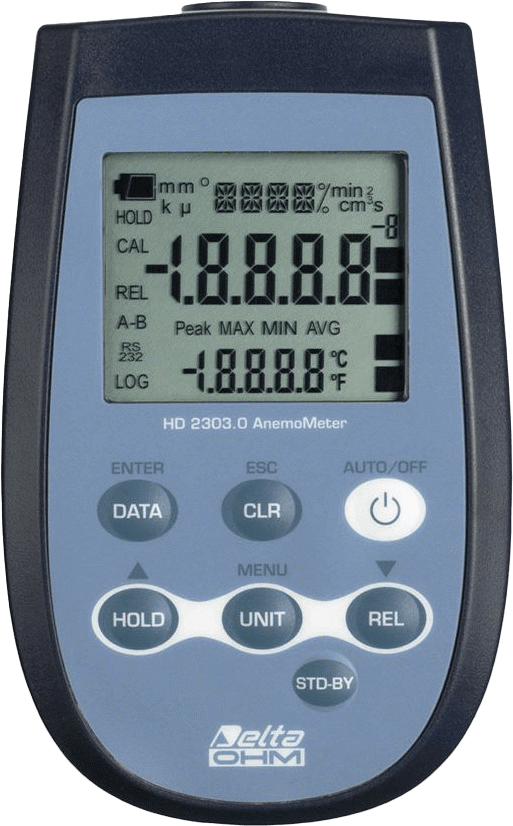

HD2303.0 – Anemometer-Thermometer
Brand: Delta OHM S.R.L.
Images are representations only.
The kit consists of the instrument HD2303.0, 3 1.5V alkaline batteries, operating manual, case. Probes must be ordered separately.
Price
Request a Quote
Stock
Out of Stock
Anemometer-Thermometer for air speed measurement which use hot-wire or vane probes and probes with Pt100 sensor with SICRAM module for temperature.
It is used in the fields of air conditioning, heating, ventilation and environmental comfort.
Storage of maximum, minimum, average value. Functions: REL, HOLD and auto power off which can be disabled, IP 67 protection degree.
Complete with carrying case, instruction manual, 3 batteries.
The air speed probes and the temperature probes have to be ordered separately.
TP47 series temperature probes are suitable.
Specifications
Brand
Dimensions (Length x Width x Height)
- 140 x 88 x 38 mm
Weight
- 160 g (complete with batteries)
Materials
- ABS
Display
- 2 x 4-1/2 digits plus symbols, Visible area: 52 x 42 mm
Operating Temperature
- -5° to 50° C
Storage Temperature
- -25° to 65° C
Working Relative Humidity
- 0 to 90 %RH without condensation
Protection Degree
- IP67
Batteries
- Three 1.5 V type AA batteries
Autonomy (*)
- 200 hours with 1800 mAh alkaline batteries
- (*) It’s referred to all the probes except the hot wire ones, whose autonomy is stated in the table "Hot wire probes".
Power Absorbed with Instrument Off
- < 20 μA
Measuring Unit
- °C
- °F
- m/s
- km/h
- ft/min
- mph
- knot
- l/s
- m³/h
- ft³/s
- ft³/min
