DO9785T, DO9765T – pH or mV Configurable Transmitters

Brand: Delta OHM S.R.L.

DO9785T, DO9765T – pH or mV Configurable Transmitters

Brand: Delta OHM S.R.L.

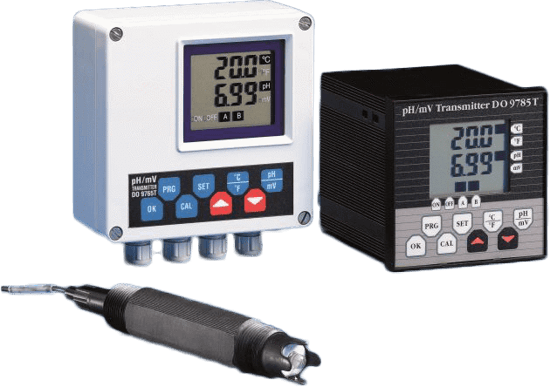

DO9765T

DO9765T pH transmitters convert the output of a pH electrode, with temperature compensation, into a 4÷20 mA signal.

The transmitter is completely configurable and for use on the field.

Dimensions 122 x 120 x 57 mm with dual LCD (measurement + temperature), output 4…20 mA insulated with 2 wires passive or 4 wires active.

Power supply in active mode 24 Vac, on request 230 Vac, in passive mode 10…35 Vdc.

The pH electrode input circuit is galvanically insulated against the 4÷20 mA output signal.

The LCD indicator allows viewing of the process signal value and of the various parameters.

The accurate design and choice of components make the instrument precise and reliable for a long working life.

The instrument works with a pH electrode or Redox and a temperature probe (Pt 100 sensor, 100 Ω at 0°C).

DO9785T

DO9785T pH transmitters convert the output of a pH electrode, with temperature compensation, into a 4÷20 mA signal.

The transmitter is completely configurable and suitable for panel mounting.

Dimensions 96 x 96 mm with dual LCD (measurement + temperature), output 4…20 mA insulated with 2 wires passive or 4 wires active. Power supply in active mode 24 Vac, on request 230 Vac, in passive mode 10…35 Vdc.

The pH electrode input circuit is galvanically insulated against the 4÷20 mA output signal.

The LCD indicator allows viewing of the process signal value and of the various parameters.

The accurate design and choice of components make the instrument precise and reliable for a long working life.

The instrument works with a pH electrode or Redox and a temperature probe (Pt 100 sensor, 100 Ω at 0°C).

Specifications

Combined Electrode Input

  • pH: -1.00 pH…15.00 pH (-500…+500 mV)
  • ORP: -1999…+1999 mV
  • Input: impedance > 10^12 Ω
  • Cable length: < 50 meters screened (about 5 nF)
  • Accuracy: 0.1 % of Reading ± 1-Digit ± 0.01 % of pH per °C of temperature drift

Temperature Input

  • Pt100 2/4-Wires: -50…199.9° C
  • Transducer energizing: 0.5 mA DC
  • Cable length: < 10 metres unscreened < 50 metres screened (about 2 nF)
  • Accuracy: 0.2° C ± 0.1 % of Reading ± 0.01° C/°C

pH Electrode Temperature Compensation

  • Automatic: According to Nernst
  • Manual: -50…200° C

Current Output

  • 4…20 mA: Programmable and proportional to the pH or mV value
  • Accuracy: 0.5 % of Reading ± 0.02 mA
  • Insulation: 2500 Vac 1 minute

R Load

  • Load resistance: RLmax = Vdc-10/0,022 RLmax= 636 Ω @ Vdc = 24 Vdc

Relay Output

  • A and B: Bistable, contact 3 A/230 Vac free potential

Power Supply

  • Active: 24 or 230 Vac -15/+10 % 1 VA, 48…62 Hz
  • Passive: 4…20 mA, 2-Wire configuration, 10…35 V

Housing DO9785T

  • External dimensions: 96 x 96 x 126 mm
  • Protection class: IP54

Housing DO9765T

  • External dimensions: 120 x 122 x 56 mm wall mounting
  • Protection class: IP64

Models matching criteria: 4
pH or mV completely configurable, with dual LCD, output 4...20mA insulated with 2 wires passive or 4 wires. Power supply active mode 24 Vac.
