DM500 Loop Powered Indicator

Brand: Status Instruments
Status Instruments Loop Powered Indicator, DM500
Images are representations only.

DM500 Loop Powered Indicator

Brand: Status Instruments
Request Information Favorite

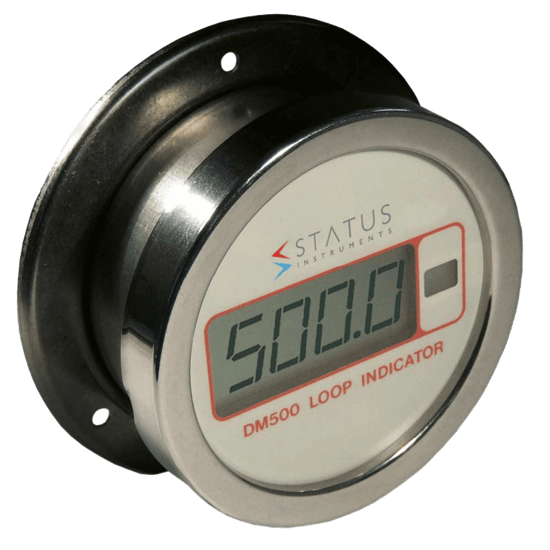

The DM500 is a loop-powered process Indicator designed to be connected in series with a (4 to 20) mA current loop and to display digitally, in engineering units the process variable represented by the current flowing.

Coarse and fine potentiometers are provided for both span and zero adjustment. The 3 ½ digit LCD display requires a very low loop drop, only 1 volt.

The display is housed in a 100 mm diameter stainless steel dial gauge housing.

Style F and G housing are deeper to accommodate any suitable in-head (4 to 20) mA transmitter.

Specifications

Brand

Accuracy

  • ± 0.1 % of Reading ± 1 Count

Applications

  • Food & Pharmaceutical Applications

Approvals & Certifications

  • BS
  • EMC: BS EN 61326

Cable Entry

  • M16 x 1.5
  • M20 x 1.5

Current

  • ± 125 mA - Max.
  • Loop Ripple: 20 mA - Max.
  • Operating: 3.8 mA Min.

Display

  • 3-1/2” Digit LCD, 20 mm
  • Range: -200 to 1999 Counts

Electrical Protection

  • Reverse Polarity

Enclosure, Body Material

  • Stainless Steel

Environmental Protection

  • IP65

Housing Size

  • Dial Gauge: 100 mm Diameter

Input

  • 4-20 mA, 2-Wire

Operating Temperature

  • 0° to 40° C (32° to 104° F)

Stability

  • Span & Offset: 0.02 %/°C, Max.

Voltage Drop

  • Loop: 1 V at 20 mA - Max.

Zero Offset

  • ± 1000 Counts 4 mA
