SRT-94 Temperature Meter
Brand: SIMEX sp. z o.o.
Images are representations only.

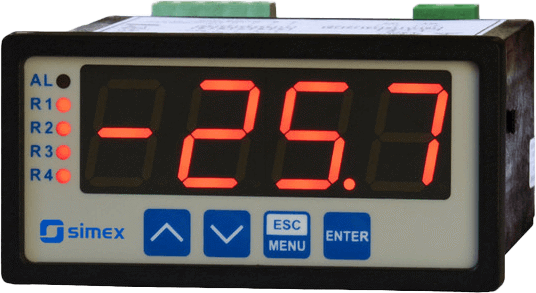

SRT-94 Temperature Meter
Brand: SIMEX sp. z o.o.The SRT-94 meter is designed for temperature measurements.
The device is equipped with one resistance-type Pt100/500/1000 input or thermocouple input which can operate with K, S, J, T, N, R, B, and E type thermocouples.
The inputs feature with fully linearized characteristics.
The 24V DC / 100 mA output is designed to supply measuring transducers, and the RS-485 port enables data transmission in production process monitoring systems.
The REL / OC control outputs can adjust the level of measured signal and are controlled according to one or two threshold values.
Moreover, the meter can be equipped with analogue outputs, according to the customer selection: active current output, passive isolated current output or active voltage output.
The meter can be configured with the local keyboard or free S-Config software via the RS-485 communication port.
Features- Temperature Meter with a Large, 20 mm High, LED Display
- Input: Thermoresistance or Thermocouple
- 0, 2 or 4 REL / OC Outputs
- Analogue Output: Active or Passive, Power Supply Output: 24V DC
- RS-485 / Modbus RTU
- Automatic Recognition of 3 and 4-conductor Connection - RTD Inputs
- Automatic Compensation of TC Cold Ends Temperature
- Free Configuration Software S-Config
Specifications
Brand
Type of Input
- Thermoresistance
- Thermocouple
Number of Outputs
- 0, 2, 3, 4
Type of Outputs
- No Output
- REL
- OC
- 2 x REL + 1 x AO: 0/4-20 mA, Active, Non-Isolated
- 2 x OC + 1 x AO: 0/4-20 mA, Active, Non-Isolated
- 2 x REL + 1 x AO: 4-20 mA, Passive, Isolated
- 2 x OC + 1 x AO: 4-20 mA, Passive, Isolated
- 2 x REL + 1 x AO: 0/1-5 V, 0/2-10 V, Active, Non-Isolated
- 2 x OC + 1 x AO: 0/1-5 V, 0/2-10 V, Active, Non-Isolated
Power Supply
- 24 Vac/dc
- 85 V ÷ 260 Vac/dc
- 12 Vac/dc
Options
- No Options
- Integrated Frame for Panel Cut-out Sealing
- Operating Temperature -20° C ÷ +50° C
- Integrated Frame for Panel Cut-out Sealing + Operating Temperature -20° C ÷ +50° C
- Green Colour LED Display
- Integrated Frame for Panel Cut-out Sealing + Green Colour LED Display
- Green Colour LED Display + Operating Temperature -20° C ÷ +50° C
- Integrated Frame for Panel Cut-out Sealing + Green Colour LED Display + Operating Temperature -20° C ÷ +50° C
