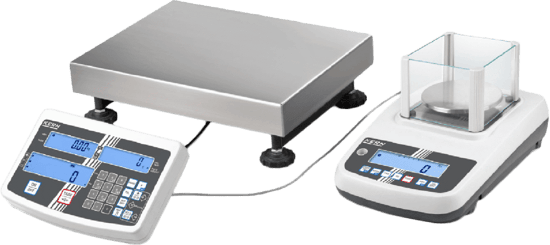

High-resolution counting system with EC type approval to count the smallest parts in the largest quantities, counting resolution up to 300,000,000 points.
Features
  • The highly accurate KERN counting system can replace a whole range of individual balances, efficiently and at a reasonable price
  • Thanks to EC type approval [M] this counting system can also be used in verified applications, e.g. for order picking packaged items, etc.
  • The balances are connected to one another with an RS 232 Y-cable, which also allows you to connect an end unit, such as, for example, signal lamps, barcode scanners or printers (KERN TCCA-A01-A, included in the scope of supply)
  • Reference scale KERN EWJ
    • This professional precision scale, which can also be used as a stand-alone scale, meets the highest demands for accuracy, weighing capacity and volume of items, by being connected to a high-capacity weighing bridge
    • Concept of easy use: All primary functions have their own key on the keypad
    • Automatic internal adjustment time-controlled every 2 hours, guarantees high degree of accuracy and makes the balance independent of its location of use
    • Draft shield standard, weighing space W×D×H 134×128×80 mm
    • Protective working cover included with delivery
  • Quantity scale KERN IFS
    • The high-accuracy quantity counting takes place on the weighing platform (= weighing bridge) KERN . In this way even the smallest of parts can be counted in large volumes
    • Tough industry standard suitable for use in harsh applications
    • Ergonomic display device with large keypad and high-contrast LCD display for easy entry and reading of, e.g., tare weights, reference weights, limit values etc.
    • Three displays for total weight (verifiable), piece weight, total quantity
    • 100 item memories for master data, such as item number, PRE-TARE (container weight), reference quantity, refere. weight etc.
    • Precise counting: The manual optimisation of reference weight gradually improves the average value of the piece weight
    • Totalising of pieces when counting
    • Printout with date and time
    • Aluminum single point load cell (1x3000e), protection against dust and water splashes IP65
    • Protective working cover included with delivery

Specifications

Brand

Weighing Capacity (Max)

  • 3 - 300 kg

Weighing Plate Dimension

  • 300 mm x 240 mm x 110 mm
  • 400 mm x 300 mm x 120 mm
  • 500 mm x 400 mm x 140 mm
  • 650 mm x 500 mm x 140 mm

Weighing Range

  • 0.6 - 6 kg

Readability (d)

  • 0.01 - 0.1 g

Minimum Piece Weight (Normal)

  • 0.2 - 1 g/piece

Displaying prices & availability for Ohio, United States in EUR. Change location or currency.

Models matching criteria: 12
CCA 100K-4M
Counting System view more
  • Weighing Capacity (Max): 60 kg | 150 kg
  • Weighing Plate: 500 mm x 400 mm x 140 mm
  • Weighing Range (Max): 6 kg
  • Readability (d): 0.1 g
  • Minimum Piece Weight (Normal): 1 g/piece
  • Compatible Scales:
    • Quantity Scale: IFS 100K-2M
    • Reference Scale: EWJ 6000-1M
Out of Stock
CCA 100K-5M
Counting System view more
  • Weighing Capacity (Max): 60 kg | 150 kg
  • Weighing Plate: 500 mm x 400 mm x 140 mm
  • Weighing Range (Max): 0.6 kg
  • Readability (d): 0.01 g
  • Minimum Piece Weight (Normal): 0.2 g/piece
  • Compatible Scales:
    • Quantity Scale: IFS 100K-2M
    • Reference Scale: EWJ 600-2M
Out of Stock
CCA 10K-4M
Counting System view more
  • Weighing Capacity (Max): 6 kg | 15 kg
  • Weighing Plate: 300 mm x 240 mm x 110 mm
  • Weighing Range (Max): 6 kg
  • Readability (d): 0.1 g
  • Minimum Piece Weight (Normal): 1 g/piece
  • Compatible Scales:
    • Quantity Scale: IFS 10K-3M
    • Reference Scale: EWJ 6000-1M
Out of Stock
CCA 10K-5M
Counting System view more
  • Weighing Capacity (Max): 6 kg | 15 kg
  • Weighing Plate: 300 mm x 240 mm x 110 mm
  • Weighing Range (Max): 0.6 kg
  • Readability (d): 0.01 g
  • Minimum Piece Weight (Normal): 0.2 g/piece
  • Compatible Scales:
    • Quantity Scale: IFS 10K-3M
    • Reference Scale: EWJ 600-2M
Out of Stock
CCA 300K-4M
Counting System view more
  • Weighing Capacity (Max): 150 kg | 300 kg
  • Weighing Plate: 650 mm x 500 mm x 140 mm
  • Weighing Range (Max): 6 kg
  • Readability (d): 0.1 g
  • Minimum Piece Weight (Normal): 1 g/piece
  • Compatible Scales:
    • Reference Scale: EWJ 6000-1M
Out of Stock
CCA 300K-5M
Counting System view more
  • Weighing Capacity (Max): 150 kg | 300 kg
  • Weighing Plate: 650 mm x 500 mm x 140 mm
  • Weighing Range (Max): 0.6 kg
  • Readability (d): 0.01 g
  • Minimum Piece Weight (Normal): 0.2 g/piece
  • Compatible Scales:
    • Reference Scale: EWJ 600-2M
Out of Stock
CCA 30K-4M
Counting System view more
  • Weighing Capacity (Max): 15 kg | 30 kg
  • Weighing Plate: 400 mm x 300 mm x 120 mm
  • Weighing Range (Max): 6 kg
  • Readability (d): 0.1 g
  • Minimum Piece Weight (Normal): 1 g/piece
  • Compatible Scales:
    • Quantity Scale: IFS 30K-3M
    • Reference Scale: EWJ 6000-1M
Out of Stock
CCA 30K-5M
Counting System view more
  • Weighing Capacity (Max): 15 kg | 30 kg
  • Weighing Plate: 400 mm x 300 mm x 120 mm
  • Weighing Range (Max): 0.6 kg
  • Readability (d): 0.01 g
  • Minimum Piece Weight (Normal): 0.2 g/piece
  • Compatible Scales:
    • Quantity Scale: IFS 30K-3M
    • Reference Scale: EWJ 600-2M
Out of Stock
CCA 60K-4M
Counting System view more
  • Weighing Capacity (Max): 30 kg | 60 kg
  • Weighing Plate: 400 mm x 300 mm x 120 mm
  • Weighing Range (Max): 6 kg
  • Readability (d): 0.1 g
  • Minimum Piece Weight (Normal): 1 g/piece
  • Compatible Scales:
    • Quantity Scale: IFS 60K-2M
    • Reference Scale: EWJ 6000-1M
Out of Stock
CCA 60K-5M
Counting System view more
  • Weighing Capacity (Max): 30 kg | 60 kg
  • Weighing Plate: 400 mm x 300 mm x 120 mm
  • Weighing Range (Max): 0.6 kg
  • Readability (d): 0.01 g
  • Minimum Piece Weight (Normal): 0.2 g/piece
  • Compatible Scales:
    • Quantity Scale: IFS 60K-2M
    • Reference Scale: EWJ 600-2M
Out of Stock
CCA 6K-4M
Counting System view more
  • Weighing Capacity (Max): 3 kg | 6 kg
  • Weighing Plate: 300 mm x 240 mm x 110 mm
  • Weighing Range (Max): 6 kg
  • Readability (d): 0.1 g
  • Minimum Piece Weight (Normal): 1 g/piece
  • Compatible Scales:
    • Quantity Scale: IFS 6K-3M
    • Reference Scale: EWJ 6000-1M
Out of Stock
CCA 6K-5M
Counting System view more
  • Weighing Capacity (Max): 3 kg | 6 kg
  • Weighing Plate: 300 mm x 240 mm x 110 mm
  • Weighing Range (Max): 0.6 kg
  • Readability (d): 0.01 g
  • Minimum Piece Weight (Normal): 0.2 g/piece
  • Compatible Scales:
    • Quantity Scale: IFS 6K-3M
    • Reference Scale: EWJ 600-2M
Out of Stock
