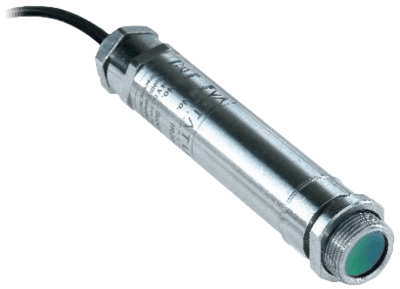

IR200 Infrared Temperature Sensor

Brand: Status Instruments

IR200 Infrared Temperature Sensor

Brand: Status Instruments
The IR200 is a general-purpose infra-red (4-20) mA loop-powered temperature transmitter housed in a robust stainless steel body.

It is designed as an alternative to traditional probe assemblies for applications where physical contact with the subject (surface of the temperature source) is either not possible or not safe.

The IR200 sensor measures the average temperature of an area depending on the selection of the sensor optics, a choice of precision optics are available for large or small targets at short or long distances.

The two wire (4-20) mA output makes the IR200 compatible with standard control loop equipment and a straight forward alternative or replacement for traditional temperature monitoring assemblies in the field.

Specifications

Accuracy

  • ± 1 % of Reading or ± 1° C (± 1.8° F), whichever is greater

Ambient Temperature Range

  • 0° to 70° C (32° to 158° F)

Cable Length

  • 3.28 feet (1 metre)

Enclosure, Body Material

  • Stainless Steel

Environmental Protection

  • IP65

Humidity

  • 0 to 95 % Relative Humidity, Non-Condensing

Loop Impedance

  • 900 ohms, Max.

Mounting

  • Adjustable Mounting Bracket
  • Fixed Mounting Bracket
  • Thread Mounting: M16 x 1 mm Pitch

Output

  • 4-20 mA, 2-Wire

Response Time

  • 240 milliseconds (90 % Response)

Supply Voltage

  • 24 Vdc (6 Vdc Min., 28 Vdc, Max.

Temperature Range

  • -20° to 500° C (-4° to 932° F)

Models matching criteria: 12
Infra Red (Non-Contact) Temperature Measurement view more
  • Field of View - 2:1 Divergent Optics
  • Temperature Range - 0° to 250° C (32° to 482° F)
Out of Stock
144,00 € EUR
Infra Red (Non-Contact) Temperature Measurement view more
  • Field of View - 2:1 Divergent Optics
  • Temperature Range - -20° to 100° C (-4° to 212° F)
Out of Stock
144,00 € EUR
Infra Red (Non-Contact) Temperature Measurement view more
  • Field of View - 15:1 Divergent Optics
  • Temperature Range - 0° to 500° C (32° to 932° F)
Out of Stock
167,40 € EUR
Infra Red (Non-Contact) Temperature Measurement view more
  • Field of View - 30:1 Divergent Optics
  • Temperature Range - -20° to 100° C (-4° to 212° F)
Out of Stock
234,60 € EUR
Infra Red (Non-Contact) Temperature Measurement view more
  • Field of View - Close-Focus Optics
  • Temperature Range - 0° to 500° C (32° to 932° F)
Out of Stock
297,60 € EUR
Infra Red (Non-Contact) Temperature Measurement view more
  • Field of View - Close-Focus Optics
  • Temperature Range - 0° to 250° C (32° to 482° F)
Out of Stock
297,60 € EUR
  • Field of View - 30:1 Divergent Optics
  • Temperature Range - 0° to 250° C (32° to 482° F)
Out of Stock
  • Field of View - 2:1 Divergent Optics
Out of Stock
  • Field of View - 30:1 Divergent Optics
  • Temperature Range - 0° to 500° C (32° to 932° F)
Out of Stock
  • Field of View - Close-Focus Optics
  • Temperature Range - -20° to 100° C (-4° to 212° F)
Out of Stock
  • Field of View - 15:1 Divergent Optics
  • Temperature Range - -20° to 100° C (-4° to 212° F)
Out of Stock
  • Field of View - 15:1 Divergent Optics
  • Temperature Range - 0° to 250° C (32° to 482° F)
Out of Stock

show more
