MG Series Inclined Liquid Column Manometers
Brand: Sauermann Group
Images are representations only.

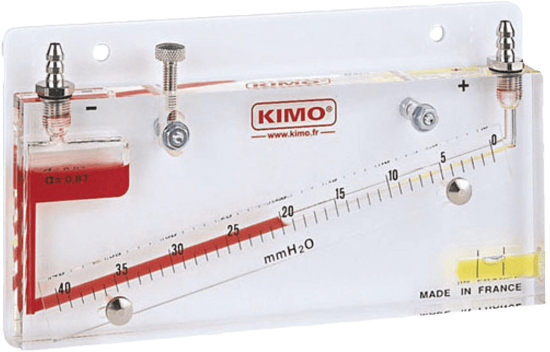

MG Series Inclined Liquid Column Manometers
Brand: Sauermann GroupKimo's MG series are inclined liquid column manometers with AWS.10 manometer liquid with a density of 0.87.
Inclined liquid column manometers measure slight variations in pressure, depression or differential pressure of air or gas.
Features- Zero adjustment by moving the slide strip
- Safety reservoir enabling momentanes overshooting of the scale
- Integrated spirit level for adjusting horizontality
- Comes with a white PVC support, two screws and two rawlplugs, two 487 connectors and a bottle of AWS.10 liquid
Specifications
Brand
MG 20 Differential Pressure
- 0 to 20 mmCE
- 0 to 200 Pa
MG 50 Differential Pressure
- 0 to 50 mmCE
- 0 to 500 Pa
MG 80 Differential Pressure
- 0 to 80 mmCE
- 0 to 800 Pa
Parameters
- Differential pressure
Manometer Type
- Inclined liquid column manometer
Manometric Liquid
- AWS 10 red oil, density 0.87 at 15° C
Maximum Static Pressure
- 6 bars
Reservoir Capacity
- 20 ml
Operating Temperature
- -30° to 60° C
