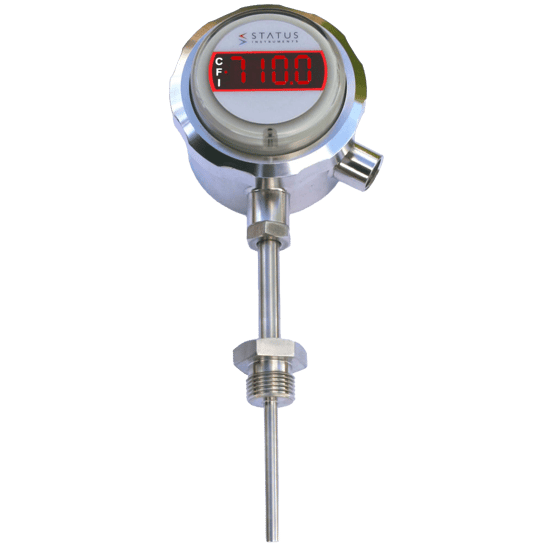

Status Temperature Transmitter, SEM710
Images are representations only.

SEM710 Temperature Transmitter

Brand: Status Instruments
Request Information Favorite
The SEM710 is the first of a new generation head mounted temperature transmitter with display feature, from status instruments.

It has been designed to accept most common temperature sensor inputs and provide the user with a standard two wire (4 to 20) mA output signal.

Isolation is provided between input and output and all temperature ranges are linear to temperature.

The addition of a display provides the user with instant information of the loop condition at the point of measurement.

It comes in either our SCH4 ABS plastic connector head or our new SCH15 stainless steel connector head.
Features
  • Pt100, Thermocouple Input
  • Isolation Input to Output
  • 4 Digit LED Display
  • Housing ABS Plastic, Aluminium or Stainless Steel
  • ExD Version Available

Specifications

Brand

Accuracy

  • ± 0.1° C (± 0.18° F) / ± 0.05 % of Reading
  • ± 0.5° C (± 0.9° F) ± 0.1 % of Full Scale Range
  • 0.1 % of Full Scale Range ± 0.5° C (± 0.9° F)
  • Calibration Accuracy: ± 5 µA
  • Loop Ripple: 0.03 % of Full Scale Range

Adjustment

  • Raise & Lower Buttons

Ambient Temperature Range

  • -10° to 50° C (14° to 122° F)

Approvals & Certifications

  • CE BS EN 61326

Burn-Out

  • Downscale
  • Upscale

Cable Length

  • 0.09” (2.5 mm) - Max.

Circuit Protection

  • Over-Voltage
  • Reverse Connection

Configuration

  • USB

Current

  • Maximum

Enclosure, Body Material

  • ABS Plastic
  • Stainless Steel

Environmental Protection

  • IP76 when used with SCH4 Head

Humidity

  • Ambient Humidity: 10 to 95 % Relative Humidity, Non-Condensing

Input

  • 4-20 mA

Input Impedance

  • 1 Megaohm

Isolation

  • Input to Output Tested at 500 Vdc

Operating Temperature

  • Ambient Operating: -40° to 85° C (-40° to 185° F)

Output

  • 2-Wire Current Sink
  • Full Range: 3.8-24 mA
  • Signal Range: 4-20 mA

Power Supply Effect

  • Supply Ripple Rejection: < ± 5 µA Error at 1 V RMS 50 Hz Ripple

Resolution

  • Display Resolution: 0.1° C

Response Time

  • < 500 milliseconds to Reach 95 % of Final Value

RTD Type

  • Pt100

Sensitivity

  • Supply Sensitivity: 0.05 µA/°C

Sensor Excitation

  • < 450 µA

Sensor, Probe Connection

  • Screw Terminal

Sensor, Probe Type

  • E Thermocouple
  • J Thermocouple
  • K Thermocouple
  • N Thermocouple
  • P Thermocouple
  • R Thermocouple
  • S Thermocouple
  • Thermocouples
  • T Thermocouple

Stability

  • ± 0.005 % of Full Scale Range/°C
  • ± 0.01 % of Full Scale Range/°C
  • ± 5 μA/°C

Storage Temperature

  • Ambient Storage: -40° to 85° C (-40° to 185° F)

Supply Voltage

  • 15-30 Vdc
  • 24 V Nominal Giving, Max.

Temperature Effect

  • Lead Effect: 0.015° C/ohm

Temperature Range

  • Cold Junction Range: -20° to 70° C (-4° to 158° F)
  • Sensor: -200° to 1,760° C (-328° to 3,200° F)

Turn-On Time

  • Start Up Time: < 3 seconds
