DBM 620 Air Flow Meter
Brand: Sauermann Group
Images are representations only.

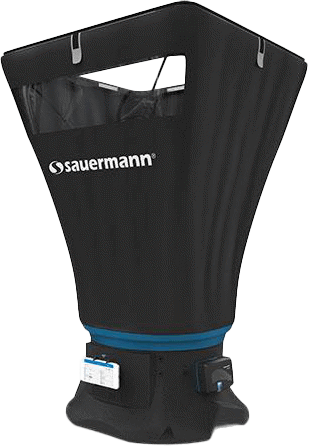

DBM 620 Air Flow Meter
Brand: Sauermann GroupThe newly redesigned Kimo DBM 620 Air Flow Meter is a multipurpose electronic air balancing instrument primarily used for efficiently taking direct air volume readings from air vents.
Features- Air Changes per Hour (ACPH) metric is the first of its kind to be included in a Balometer
- Easily swap between 5 different hood configurations
- SmartKap App allows for easy reading and export of data
- Also functions as autonomous micromanometer with Pitot tube attachment
- Lighter and smaller than previous models
- Extendable tripod eliminates the need for ladders in most environments
Specifications
Brand
Units of Measure
- °F, °C, % RH, Pa, m/s, mbar, l/s, hPa, ft/min, m³/h, inWg, cfm
Parameters
- Air velocity
- Airflow
- Atmospheric pressure
- Differential pressure
- Humidity
- Temperature
Airflow Measuring Range
- From 35 to 4250 m³/h
- From 10 to 1181 L/s
- From to 21 to 2501 CFM
Air Velocity Measuring Range
- From 0.2 to 10 m/s
- From 39 to 1969 ft/min
Temperature Measuring Range
- From -20° to 70° C
Relative Humidity Measurement Range
- From 0 to 100 % RH
Atmospheric Pressure Measurement Range
- From 700 to 1100 mbar
Pressure Range
- From -2500 to +2500 Pa
- From -10 to 10 inWg
Operating Temperature
- 0° to 50° C
