DM650/TM Temperature Gauge With Data Logging, Alarm & Messaging
Brand: Status Instruments
Images are representations only.

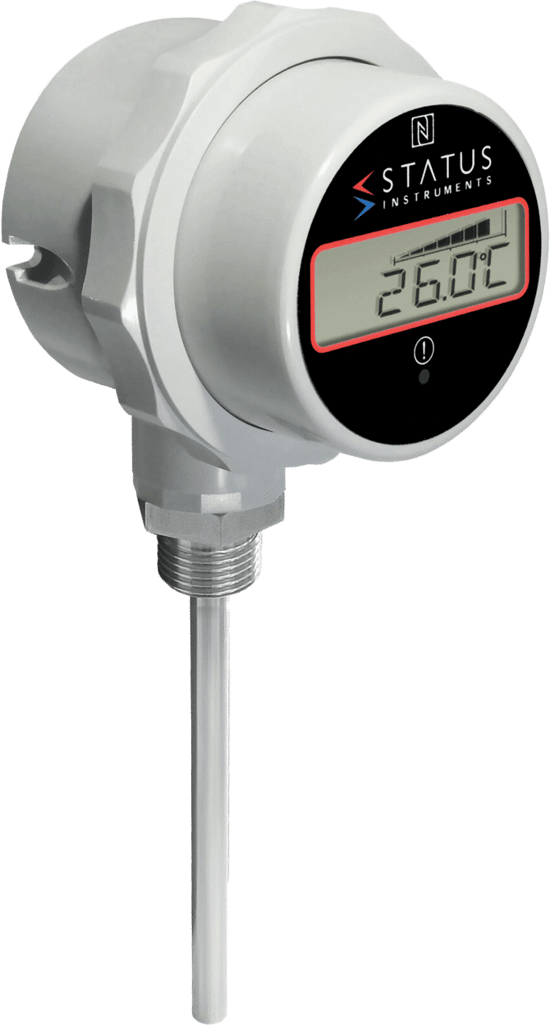

DM650/TM Temperature Gauge With Data Logging, Alarm & Messaging
Brand: Status InstrumentsThe DM650XTM battery powered temperature indicator accepts RTD or thermocouple temperature sensors and displays the sensor temperature in °C, °F or K on a 6-digit LCD display.
Configuration is achieved by operating a single push button and navigating a menu structure. A contactless NFC interface is also provided for configuration and the data logger function.
Features- Accepts A PT100 Or Thermocouple Temperature Probe
- Battery Powered
- USB And NFC Interface
- Alarm Relay / User Set-Display Messages
- 5000 Point Data Logger
- ABS Plastic, Stainless Or Aluminium Housing
Specifications
Brand
Update Rate
- 5 seconds
Relay Response Time
- < 10 seconds
Battery
- 1 x (AA 3.6 V lithium)
Battery Life
- 1-year Min.
Clock Accuracy
- ± 2 seconds per month typically
Ambient Temperature
- Operating/storage (-30° to 70) °C
Ambient Humidity
- Operating/storage (10 to 90) %RH non-condensing
Protection
- IP67, cable/probe entries must be sealed to IP67 to maintain
USB Configuration Ambient
- (10 to 30) °C
Input Sensor
- Two-part screw connector
Output Relays
- 2 x Two-part screw connectors
USB Connection
- USB mini B socket
Enclosure
- ABS, grey base, grey clamp ring
Display Cover
- Polycarbonate, clear
Front of Display Diameter
- 65 mm
Weight (approximate)
- 170 g
EMC
- BS EN 61326
- Note - Sensor input wires to be less than 3 m to comply
Ingress Protection
- BS EN 60529
RoHS
- Directive 2011/65/EU
