SWP-99 Current/Voltage Meter
Brand: SIMEX sp. z o.o.
Images are representations only.

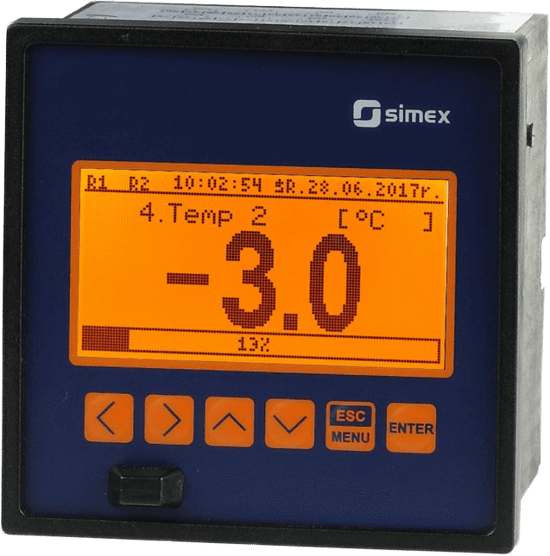

SWP-99 Current/Voltage Meter
Brand: SIMEX sp. z o.o.The SWP-99X meter is intended for measuring and presentation of current values from max. 8 measuring channels in 0/4-20 mA, 0/1-5 V, 0/2-10 V standard.
Each channel can be individually designated - described with any measuring unit.
The LCD graphical display allows for visualization of the values from all 8 channels simultaneously.
A significant advantage is possibility of viewing the trends in each measuring channel as the graphs from the last 12 seconds to 8 hours.
The SWP-99X is equipped with electronic relay outputs that can be used to control external devices.
There are icons on the screen signalling the status of the outputs.
The meter can be configured with the local keyboard or free S-Toolkit software via the RS-485 or USB-PC communication port.
Features- Multichannel Meter with Graphic LCD Display
- Up to 8 Inputs 0/4-20 mA, 0/1-5 V, 0/2-10 V
- 2 Electronic Relay Outputs: optoMOS
- Power Supply Output: 24V DC / 200 mA
- Programmable Measuring Range and Indication Filtration
- White or Amber Colour LCD
- RS-485, USB-PC / Modbus RTU
- Free Configuration S-Toolkit Software
Specifications
Brand
Backlight Colour
- Amber
- White
Number and Type of Inputs
- 2 x U/I
- 4 x U/I
- 8 x U/I
Power Supply
- 24 Vac/dc
- 85 V ÷ 260 Vac/dc
- 12 Vac/dc
Options
- No Options
- Integrated Frame for Panel Cut-out Sealing
- Operating Temperature -20° C ÷ +50° C Including PCB Conformal Coating
- Integrated Frame for Panel Cut-out Sealing + Operating Temperature -20° C ÷ +50° C Including PCB Conformal Coating
