DM640 Battery Powered Thermometer
Brand: Status Instruments
Images are representations only.
DM640 Battery Powered Thermometer
Brand: Status InstrumentsThe DM600 series of battery powered indicators accepts either an RTD (DM640P) or a Thermocouple (DM640TC) input.
Each device shows the temperature on a 4 digit LCD display. The unit is microprocessor based.
The sensor type is selected from a simple to use menu system which is navigated by the use of three push buttons located on the rear of the display. This feature enables the user to easily configure the device in the field without the use of any other equipment.

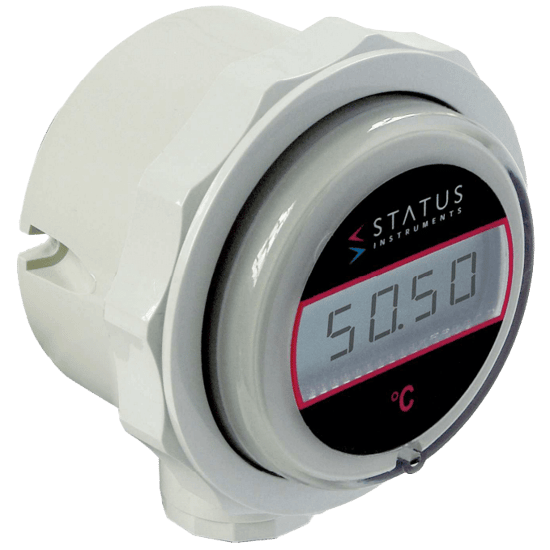

The DM640P and DM640TC are sealed into a cap as pictured above. There are several mounting options including the SCH4 series of enclosures and a stainless steel option, the SCH15 ATEX versions are available for use in hazardous dust and gas areas.
Specifications
Brand
Accuracy
- DM640P: ± 0.1 % of Reading ± 0.2° C (± 0.36° F)
- DM640TC: ± 0.1 % of Full Scale ± 0.5° C (± 0.9° F)
Alarm
- Battery Alarm Via Display
Ambient Temperature Range
- DM640: -10° to 70° C (14° to 158° F)
- DM640X: -10° to 50° C (14° to 122° F)
Approvals & Certifications
- ATEX II 1 GD EEx ia IIC T4
- BS EN 60751, JISC 1604
Battery Life
- 1-Year Min.
Configuration
- Security Passcode Protected
Display
- 4-Digit LCD
Electrical Connectors
- 3-Terminal Screw Block
Enclosure, Body Material
- ABS Plastic
- Stainless Steel
Environmental Protection
- IP67
Measuring Range
- DM640P: -100° to 800° C (-148° to 1,472° F)
- DM640TC: -200° to 1,800° C (-328° to 3,272° F)
Power Requirement
- Battery Typical: 3.6 V Lithium AA Replaceable
Resolution
- 0.001° C
- 0.01° C
- 0.1° C
- 1° C
RTD Type
- DM640P: Ni120
- DM640P: Pt100
Sensor, Probe Type
- DM640TC: B Thermocouple
- DM640TC: E Thermocouple
- DM640TC: J Thermocouple
- DM640TC: K Thermocouple
- DM640TC: L Thermocouple
- DM640TC: N Thermocouple
- DM640TC: R Thermocouple
- DM640TC: S Thermocouple
- DM640TC: T Thermocouple
Wiring
- Maximum
Displaying prices & availability for Ohio, United States in EUR. Change location or currency.
Models matching criteria: 7
DM640 Display Only
Request Lead Time
140,40 € EUR
DM640 Display Only
Request Lead Time
140,40 € EUR
DM640 Display Only
Request Lead Time
230,00 € EUR
- Model - Standard Version
- Sensor Type - Thermocouple Input
Out of Stock
- Model - Intrinsically Safe Version with SCH4 Head
- Sensor Type - Thermocouple Input
Out of Stock
- Model - Intrinsically Safe Version with SCH4 Head
- Sensor Type - Pt100/Ni120 Input
Out of Stock
- Model - Standard Version
- Sensor Type - Pt100/Ni120 Input
Out of Stock
