OBE Series Transmitted Light Microscope & Digital Microscope

Brand: Kern
OBE-104T241.png img-obe-112-113-A.png img-obe-111-A.png OBE-124C825.png OBE-122.png OBE-104C825.png OBE-12_13_monokular.png OBE-12_13_trinokular.png OBE-12_13_butterfly.png
Images are representations only.

OBE Series Transmitted Light Microscope & Digital Microscope

Brand: Kern
Request Information
Favorite
Transmitted Light Microscope OBE-10/OBE-11 - The fully equipped all-round compound microscope for schools, training and laboratories.

Transmitted Light Microscope OBE-12/OBE-13 - Elegant, dynamic and impressive - the new all-round compound microscope for schools, training and laboratories.

Digital Microscope Set OBE-S - The fully-equipped all-round compound microscope as a comprehensive digital solution for schools, training and laboratories.
Features
  • Transmitted Light Microscope OBE-10/OBE-11
    • The KERN OBE-1 series is a range of high-quality, fully-equipped compound microscopes, which can't be beaten in terms of ease of use and ergonomic design
    • The strong and continuously dimmable 3W LED guarantees optimum illumination of the samples and also ensures long service life. Mobile use of several models is also no problem through the use of rechargeable batteries
    • The height-adjustable and thereby focusable 1.25 ABBE condenser with aperture diaphragm is a further quality feature of the OBE-1 series and ensures the very best concentration of light
    • Height adjustment of the fully-equipped mechanical stage is carried out using a coarse and fine focusing knob on both sides. The ergonomically designed coaxial drive enables you to work with the samples and move them rapidly
    • A large selection of different eyepieces, lenses, a simple polarisation unit and a dark field kit is also available
    • A protective dust cover, eye cups, as well as multi-lingual user instructions are included in the scope of the delivery
    • A C-mount adapter is required to connect a camera to the trinocular version
    • Also available in a set of 10
  • Transmitted Light Microscope OBE-12/OBE-13
    • The brand new OBE-12/13 range stands out through its exclusive, dynamic device, which is second to none in terms of sturdy construction and ergonomics.
    • The clever storage compartment on the back will enables quick practical storage for your power cable. Thanks to the USB connection technology, it is also possible to supply power using an external power bank
    • The impressive, infinitely dimmable 3 W LED guarantees bright illumination of your sample
    • A further highlight is the butterfly lens barrel which is integrated as standard and which enables you to achieve the ideal viewing angle.
    • The height-adjustable and thereby focusable 1.25 Abbe condenser with aperture diaphragm is a further quality feature of the OBE range and guarantees the very best concentration of light
    • Height adjustment of the fully-equipped mechanical stage is carried out using a coarse and fine focusing knob on both sides. The ergonomically designed coaxial drive enables you to work with the samples and move them rapidly
    • A large selection of different eyepieces and objectives is also available
    • A protective dust cover, eye cups, as well as multi-lingual user instructions are included in the scope of the delivery
    • A C-mount adapter is required to connect a camera to the trinocular version
  • Digital Microscope Set OBE-S
    • The proven OBE range is now also available to you as a comprehensive digital solution for your live investigations. Optionally available with an adapted tablet or C-mount camera. Naturally, the appropriate C-mount adapter is included with the delivery
    • The KERN OBE-1 series is a range of high-quality, fully-equipped compound microscopes, which can't be beaten in terms of ease of use and ergonomic design
    • The strong and continuously dimmable 3W LED guarantees optimum illumination of the samples and also ensures long service life
    • The height-adjustable and thereby focusable 1.25 ABBE condenser with aperture diaphragm is a further quality feature of the OBE-1 series and ensures the very best concentration of light

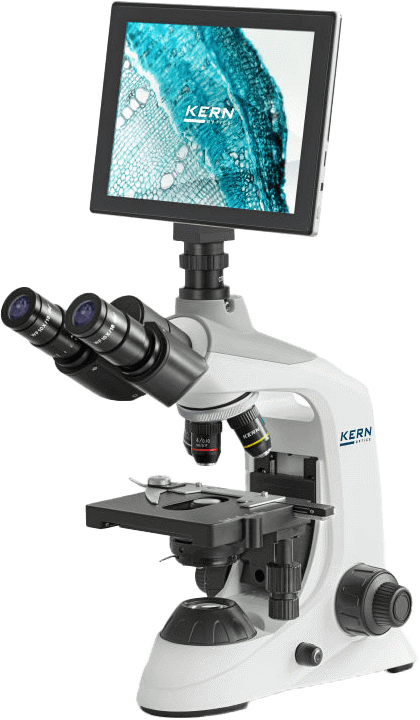

    • The adapted KERN ODC 241 tablet-camera has been specially developed for simple, convenient and direct investigation of the sample on the screen. Ideally suited for school pupils and students in education or for demonstration purposes in the laboratory
    • The adapted C-mount camera is available in different versions and can be used anywhere
    • For detailed information on the individual components, see the relevant product description of the individual item
    • A large selection of different eyepieces, lenses, a simple polarisation unit and a dark field kit is also available
    • A protective dust cover, eye cups, as well as multi-lingual user instructions are included in the scope of the delivery

Specifications

Brand

Optical System (DIN)

  • Finite

Tube

  • Monocular
  • Binocular
  • Trinocular
  • Dioptre Compensation One-Sided (for Binocular and Trinocular models)

Illumination

  • 3W LED (Transmitted Light)

Net Weight

  • Approximately 4.988 kg
  • Approximately 4.488 kg

Objectives

  • 4x / 10x / 40x
  • 4x / 10x / 40x / 100x

Overall Dimensions W×D×H

  • 320 mm x 180 mm x 365 mm
  • 360 mm x 150 mm x 320 mm

Eyepiece Field Width

  • HWF 10x / Ø 18.0 mm

Resolution - Digital Microscope

  • 5.1MP, 5MP

Interface

  • USB 2.0 (6.8 - 55 FPS)
  • USB 3.0 (14.2 - 101.2 FPS)
  • WLAN, USB 2.0, HDMI, SD (15-30 fps)

Sensor

  • CMOS 1/2.5"

Boiling Pot

  • 30° Inclined
  • Butterfly 30°
  • 360° Rotatable

Objectives Quality

  • Achromatic

  • Training, Haematology, Sediment Investigation, Doctor's Surgeries
  • Applications/Samples
    • Translucent, Thin, High-Contrast, Less Complex Samples (e.g. Plant Tissue, Coloured Cells/Parasites)
