CR 110 Solar Radiation Transmitter
Brand: Sauermann Group
Images are representations only.

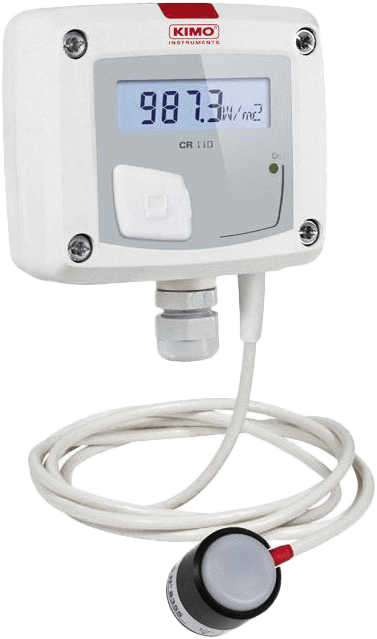

CR 110 Solar Radiation Transmitter
Brand: Sauermann GroupKimo’s CR 110 measures solar radiation from 0 to 1,500 w/m2.
Features- Measuring range: 0 to 1,500 w/m2
- 0-10 V or 4-20 mA output
- With or without 10-digits LCD display
- Housing with simplified mounting system
- Software or DIP switch configuration
- Quick and easy mounting with the 1/4 turn system with wall-mount plate
Specifications
Brand
Units of Measure
- W/m²
Parameters
- Light
IP Protection
- IP65
Standards
- 2011/65/EU RoHS II
- 2012/19/EU WEEE
- 2014/30/EU EMC
- 2014/35/EU Low Voltage
Power Supply
- Active: 24 Vac/Vdc
- Passive: 16/30 Vdc
Outputs
- Active: 0-10 V
- Passive: 4-20 mA
Operating Temperature
- 0° to 50° C
Displaying prices & availability for Ohio, United States 43201 in EUR. Change location or currency.
Models matching criteria: 1
In Stock
