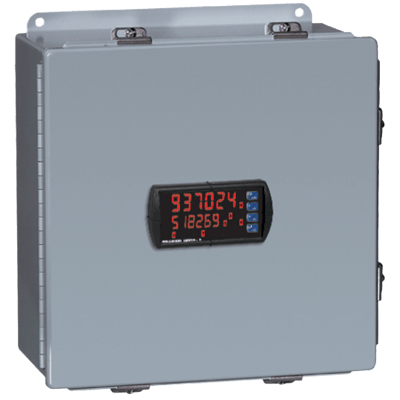

PDA2700 Series Enclosure

Brand: Precision Digital Corporation
Request Information
Favorite

The PDA2700 series of steel NEMA 4X enclosures for 1/8 DIN Digital Panel Meters provide a convenient way to mount up to six Precision Digital meters to walls and other vertical structures.

Many of these enclosures also have room for additional devices like a light / horn and a 24 V transmitter power supply.

These enclosures come pre-cut with horizontal or vertical 1/8 DIN cutouts or they can be ordered with no cutouts.

The meters are mounted in the door of the enclosure thus allowing for programming and operation of the meter.

No additional mounting hardware other than screws is needed.

The door is hinged and secured with latches.

Enclosures, meters and accessories are ordered and packaged separately.
Features
  • House up to 6 Meters
  • 16-Gauge Type 304 Steel
  • 14-Gauge Type 304 Steel
  • 1/8 DIN Cutouts Pre-Cut
  • Horizontal, Vertical, or No Cutouts
  • NEMA 4, 12 and 13
  • Cover Secured with Screwed Latches
  • Hinged Door
  • Meter Mounted in Cover
  • Sub-Panels Available
  • Mounting Holes Integral to Enclosure
  • PDA1024-01 24 VDC Power Supply Available
  • UL Listed, CSA Certified
  • Light / Horn & Reset Button

Displaying price & availability for United States in EUR Change location or currency.

24 models matching criteria
PDA2701
Product Type: NEMA 4 Enclosure, Material: Painted Steel, Outside Dimensions: 7.5" x 6.9" x 4.0" / 191 x 176 x 102 mm, Enclosure Cutouts: One, Cutout DIN Size: 1/8 DIN, Meter Types: C, Orientation: Horizontal, Meter Mounting: Through front panel, Cover Method: Hinge / Screw, Approvals: CSA - Electric Safety, UL/C-UL
Out of Stock
PDA2702
Product Type: NEMA 4 Enclosure, Material: Painted Steel, Outside Dimensions: 9.5" x 6.9" x 3.5" / 241 x 176 x 89 mm, Enclosure Cutouts: Two, Cutout DIN Size: 1/8 DIN, Meter Types: C, Orientation: Horizontal, Meter Mounting: Through front panel, Cover Method: Hinge / Screw, Approvals: CSA - Electric Safety, UL/C-UL
Out of Stock
PDA2703
Product Type: NEMA 4 Enclosure, Material: Painted Steel, Outside Dimensions: 11.5" x 8.9" x 4.0" / 292 x 227 x 102 mm, Enclosure Cutouts: Three, Cutout DIN Size: 1/8 DIN, Meter Types: C, Orientation: Horizontal, Meter Mounting: Through front panel, Cover Method: Hinge / Screw, Approvals: CSA - Electric Safety, UL/C-UL
Out of Stock
PDA2703-1
Product Type: NEMA 4 Enclosure, Material: Painted Steel, Outside Dimensions: 11.5" x 8.9" x 4.0" / 292 x 227 x 102 mm, Enclosure Cutouts: One, Cutout DIN Size: 1/8 DIN, Meter Types: C, Orientation: Horizontal, Meter Mounting: Through front panel, Cover Method: Hinge / Screw, Approvals: CSA - Electric Safety, UL/C-UL
Out of Stock
PDA2703-2
Product Type: NEMA 4 Enclosure, Material: Painted Steel, Outside Dimensions: 11.5" x 8.9" x 4.0" / 292 x 227 x 102 mm, Enclosure Cutouts: Two, Cutout DIN Size: 1/8 DIN, Meter Types: C, Orientation: Horizontal, Meter Mounting: Through front panel, Cover Method: Hinge / Screw, Approvals: CSA - Electric Safety, UL/C-UL
Out of Stock
PDA2704
Product Type: NEMA 4 Enclosure, Material: Painted Steel, Outside Dimensions: 13.5" x 12.9" x 6.0" / 343 x 329 x 152 mm, Enclosure Cutouts: Four, Cutout DIN Size: 1/8 DIN Meter Types: A, B, C, E, Orientation: Horizontal, Meter Mounting: Through front panel, Cover Method: Hinge / Screw, Approvals: CSA - Electric Safety, UL/C-UL
Out of Stock
PDA2704-1
Product Type: NEMA 4 Enclosure, Material: Painted Steel, Outside Dimensions: 13.5" x 12.9" x 6.0" / 343 x 329 x 152 mm, Enclosure Cutouts: One, Cutout DIN Size: 1/8 DIN, Meter Types: A, B, C, E, Orientation: Horizontal, Meter Mounting: Through front panel, Cover Method: Hinge / Screw, Approvals: CSA - Electric Safety, UL/C-UL
Out of Stock
PDA2704-1C
Product Type: NEMA 4 Enclosure, Material: Painted Steel, Outside Dimensions: 13.5" x 12.9" x 6.0" / 343 x 329 x 152 mm, Enclosure Cutouts: One, Cutout DIN Size: 1/8 DIN, Meter Types: A, B, C, E, Orientation: Horizontal, Meter Mounting: Through front panel, Cover Method: Hinge / Screw, Approvals: CSA Electric Safety, UL/C-UL
Out of Stock
PDA2704-2
Product Type: NEMA 4 Enclosure, Material: Painted Steel, Outside Dimensions: 13.5" x 12.9" x 6.0" / 343 x 329 x 152 mm, Enclosure Cutouts: Two, Cutout DIN, Size: 1/8 DIN Meter Types: A, B, C, E, Orientation: Horizontal, Meter Mounting: Through front panel, Cover Method: Hinge / Screw, Approvals: CSA - Electric Safety, UL/C-UL
Out of Stock
PDA2704-2C
Product Type: NEMA 4 Enclosure, Material: Painted Steel, Outside Dimensions: 13.5" x 12.9" x 6.0" / 343 x 329 x 152 mm, Enclosure Cutouts: Two, Cutout DIN Size: 1/8 DIN, Meter Types: A, B, C, E, Orientation: Horizontal, Meter Mounting: Through front panel, Cover Method: Hinge / Screw, Approvals: CSA - Electric Safety, UL/C-UL
Out of Stock
PDA2704-3C
Product Type: NEMA 4 Enclosure, Material: Painted Steel, Outside Dimensions: 13.5" x 12.9" x 6.0" / 343 x 329 x 152 mm, Enclosure Cutouts: Three, Cutout DIN Size: 1/8 DIN, Meter Types: A, B, C, E, Orientation: Horizontal, Meter Mounting: Through front panel, Cover Method: Hinge / Screw, Approvals: CSA - Electric Safety, UL/C-UL
Out of Stock
PDA2704-3
Product Type: NEMA 4 Enclosure, Material: Painted Steel, Outside Dimensions: 13.5" x 12.9" x 6.0" / 343 x 329 x 152 mm, Enclosure Cutouts: Three, Cutout DIN Size: 1/8 DIN, Meter Types: A, B, C, E, Orientation: Horizontal, Meter Mounting: Through front panel, Cover Method: Hinge / Screw, Approvals: CSA - Electric Safety, UL/C-UL
Out of Stock
PDA2705
Product Type: NEMA 4 Enclosure, Material: Painted Steel, Outside Dimensions: 13.5" x 12.9" x 6.0" / 343 x 329 x 152 mm, Enclosure Cutouts: Five, Cutout DIN Size: 1/8 DIN, Meter Types: A, B, C, E, Orientation: Horizontal, Meter Mounting: Through front panel, Cover Method: Hinge / Screw, Approvals: CSA - Electric Safety, UL/C-UL
Out of Stock
PDA2706
Product Type: NEMA 4 Enclosure, Material: Painted Steel, Outside Dimensions: 13.5" x 12.9" x 6.0" / 343 x 329 x 152 mm, Enclosure Cutouts: Six, Cutout DIN Size: 1/8 DIN Meter Types: A, B, C, E, Orientation: Horizontal, Meter Mounting: Through front panel, Cover Method: Hinge / Screw, Approvals: CSA - Electric Safety, UL/C-UL
Out of Stock
PDA2713
Product Type: NEMA 4 Enclosure, Material: Painted Steel, Outside Dimensions: 13.5" x 12.9" x 6.0" / 343 x 329 x 152 mm, Enclosure Cutouts: Four, Cutout DIN Size: 1/8 DIN, Meter Types: C, D, Orientation: Dual Meter Mounting: Through front panel, Cover Method: Hinge / Screw, Approvals: CSA - Electric Safety, UL/C-UL
Out of Stock
PDA2701-V
Product Type: NEMA 4 Enclosure, Material: Painted Steel, Outside Dimensions: 7.5" x 6.9" x 4.0" / 191 x 176 x 102 mm, Enclosure Cutouts: One, Cutout DIN Size: 1/8 DIN, Meter Types: D, Orientation: Vertical, Meter Mounting: Through front panel, Cover Method: Hinge / Screw, Approvals: CSA - Electric Safety, UL/C-UL
Out of Stock
PDA2702-V
Product Type: NEMA 4 Enclosure, Material: Painted Steel, Outside Dimensions: 9.5" x 6.9" x 3.5" / 241 x 176 x 89 mm, Enclosure Cutouts: Two, Cutout DIN Size: 1/8 DIN, Meter Types: D, Orientation: Vertical, Meter Mounting: Through front panel, Cover Method: Hinge / Screw, Approvals: CSA - Electric Safety, UL/C-UL
Out of Stock
PDA2703-V
Product Type: NEMA 4 Enclosure, Material: Painted Steel, Outside Dimensions: 13.5" x 12.9" x 6.0" / 343 x 329 x 152 mm, Enclosure Cutouts: Three, Cutout DIN Size: 1/8 DIN, Meter Types: D, Orientation: Vertical, Meter Mounting: Through front panel, Cover Method: Hinge / Screw, Approvals: CSA - Electric Safety, UL/C-UL
Out of Stock
PDA2704-V
Product Type: NEMA 4 Enclosure, Material: Painted Steel, Outside Dimensions: 13.5" x 12.9" x 6.0" / 343 x 329 x 152 mm, Enclosure Cutouts: Four, Cutout DIN Size: 1/8 DIN, Meter Types: D, Orientation: Vertical, Meter Mounting: Through front panel, Cover Method: Hinge / Screw, Approvals: CSA - Electric Safety, UL/C-UL
Out of Stock
PDA2705-V
Product Type: NEMA 4 Enclosure, Material: Painted Steel, Outside Dimensions: 13.5" x 12.9" x 6.0" / 343 x 329 x 152 mm, Enclosure Cutouts: Five, Cutout DIN Size: 1/8 DIN, Meter Types: D, Orientation: Vertical, Meter Mounting: Through front panel, Cover Method: Hinge / Screw, Approvals: CSA - Electric Safety, UL/C-UL
Out of Stock
PDA2706-V
Product Type: NEMA 4 Enclosure, Material: Painted Steel, Outside Dimensions: 13.5" x 12.9" x 6.0" / 343 x 329 x 152 mm, Enclosure Cutouts: Six, Cutout DIN Size: 1/8 DIN, Meter Types: D, Orientation: Vertical, Meter Mounting: Through front panel, Cover Method: Hinge / Screw, Approvals: CSA - Electric Safety, UL/C-UL
Out of Stock
PDA2722
Product Type: NEMA 4 Enclosure, Material: Painted Steel, Outside Dimensions: 9.5" x 6.9" x 3.5" / 241 x 176 x 89 mm, Enclosure Cutouts: Two, Cutout DIN Size: 1/8 DIN, Meter Types: C, D, Orientation: Dual, Meter Mounting: Through front panel, Cover Method: Hinge / Screw, Approvals: CSA - Electric Safety, UL/C-UL
Out of Stock
PDA2703-B
Product Type: NEMA 4 Enclosure, Material: Painted Steel, Enclosure Cutouts: None, Cover Method: Hinge / Screw, Approvals: CSA - Electric Safety, UL/C-UL
Out of Stock
PDA2706-B
Product Type: NEMA 4 Enclosure, Material: Painted Steel, Enclosure Cutouts: None, Cover Method: Hinge / Screw, Approvals: CSA - Electric Safety, UL/C-UL
Out of Stock

Specifications

Brand

Approvals & Certifications

  • CSA
  • UL

Enclosure, Body Material

  • PDA2701: 16-gauge Steel
  • PDA2702-2706: 14-gauge Steel

Environmental Protection

  • IP52
  • IP54
  • IP66
  • NEMA 12
  • NEMA 13
  • NEMA 4

Color

  • Gray

Meters

  • Houses up to 6 metres

Meter Mounting Method

  • Through cover

Cover Mounting Method

  • Hinge / latch

Warranty

  • 1 Year
