SW-BCD-94 BCD/RS-485 Meter
Brand: SIMEX sp. z o.o.
Images are representations only.

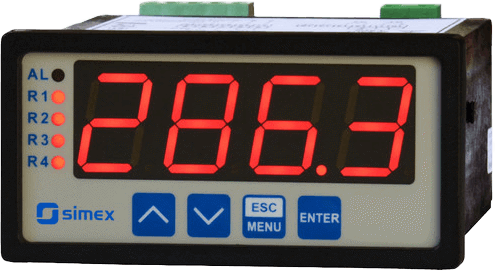

SW-BCD-94 BCD/RS-485 Meter
Brand: SIMEX sp. z o.o.The SW-BCD-94 indicator can be used as the indicator output for PLCs to display data in the binary, bcd or byte format or to show typical information transmitted over the RS-485 interface.
Depending on the parameter settings, the indicator can display:
- Digits: 0 - 9, with programmable decimal point
- Binary Data: 0 - 9, A - F, showing the statuses of e.g. the address lines, data lines, etc.
- Various messages and text which can be created on the 7-segment digital displays
The meter can be configured with the local keyboard or free S-Config software via the RS-485 communication port.
Features- Universal Indicator with Serial and Parallel Input
- 4 Strobe Inputs; 16 Data Inputs
- RS-485 / Modbus RTU
- SLAVE
- Choice of Number of Strobe Inputs and Strobe Signal Type
- Choice of Input and Displayed Data Type
- Display Brightness Adjustable in 8 Steps
- Free Configuration Software S-Config
Specifications
Brand
Number of Inputs
- 20
Input Type
- Digital BCD
Output Type
- No Output
Power Supply
- 16...35 Vac, 19...50 Vdc
- 85..260 Vac/dc
- 11,4...15 Vac/dc
Display
- LED, 4 x 20 mm, red
- LED, 4 x 20 mm, green
Communication Interface
- RS-485 / Modbus RTU
Transmission Parameters
- 1200...115200 bit/s
- 8N1 / 8N2
Operating Temperature
- 0...+50° C
- -20…+50° C
Protection Class
- IP 20: Case and Connection Clips
- Optional Integrated Frame for Panel Cut-out Sealing
- IP 65: Front
Case Material
- NORYL-GFN2S E1
Mounting
- Panel
Case Dimensions
- 96 x 48 x 100 mm
