EMS School Balance

Brand: Kern
Images are representations only.

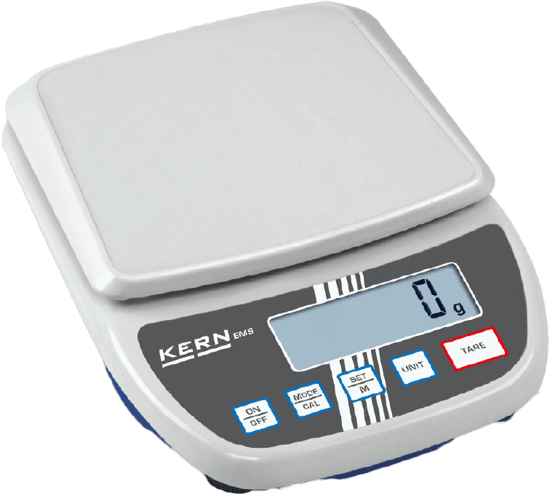

EMS School Balance

Brand: Kern
Request Information Favorite
Entry level laboratory balance with large weighing plate.
Features
  • Especially suitable for use in schools and universities, for example for biology, chemistry, physics
  • Large, shock proof weighing plate made of plastic. Particularly flat design
  • Ergonomically optimised keypad with large keys and a high-contrast LCD display
  • Secure and non-slip positioning with rubber feet
  • Adjusting program CAL for quick setting of the balance accuracy, external test weights at an additional price
  • Draught shield standard for models with weighing plate size Ø 105 mm, weighing space W×D×H 145×145×65 mm
  • In order to make it easier for you to make the right choice of KERN balance, we have included a quality code for each model, which is made up of two quality features and will give you technical data and pictograms in addition to the product features. This will help you to make the decision on the perfect balance for your application

Specifications

Brand

Construction

  • Casing Material: Plastic
  • Dimensions Draft Shield (WxDxH): 165 x 165 x 80 mm
  • Dimensions Housing (WxDxH): 200 mm x 280/275/270 mm x 63/48/59 mm
  • Overall Dimensions Mounted (WxDxH): 200 mm x 280 mm x 126 mm - 180 mm x 235 mm x 165 mm
  • Weighing Space (WxDxH): 145 x 145 x 65 mm
  • Weighing Surface (d): 105 mm, 175 x 190 mm
  • Material Weighing Plate: Plastic

Display

  • Display Digit Height (Large): 25 mm

Power Supply

  • Battery: 9 V Block
  • Input Voltage: 220-240 Vac 50 Hz
  • Mains Adapter: Mains Adapter External
  • Mains Adapter/Adapter Included: EURO CH UK US
  • Operating Time: 40 h
  • Rechargeable Battery: Optional

Functions

  • Counting Function: Yes
  • Percentage Determination: Yes

Measuring System

  • Adjustment Options: External Calibration
  • Weighing system: Strain gauge
  • Weighing Units: oz. oz.t g dwt
  • Eccentric Loading at 1/3 [Max.]: 5 mg - 5 g
  • Linearity: 5 mg - 3 g
  • Readability [d]: 1 mg - 1 g
  • Recommended Adjusting Weight: 300 g - 12 kg
  • Repeatability: 2 mg - 1 g
  • Resolution: 6000 - 300,000
  • Stabilisation Time Under Laboratory Conditions: 3 s
  • Tare Range: 300 g - 12 kg
  • Warm Up Time: 30 min - 2 h
  • Weighing Capacity [Max.]: 300 g - 12 kg

Environmental Conditions

  • Maximum Humidity: 80 %
  • Maximum Operating Temperature: 35° C
  • Minimum Ambient Temperature: 5° C
  • Minimum Humidity: 40 %

Counting

  • Counting Resolution: 3000 - 150,000
  • Minimum Piece Weight at Piece Counting (Laboratory): 2 mg - 2 g
  • Minimum Piece Weight at Piece Counting (Normal): 20 mg - 20 g
