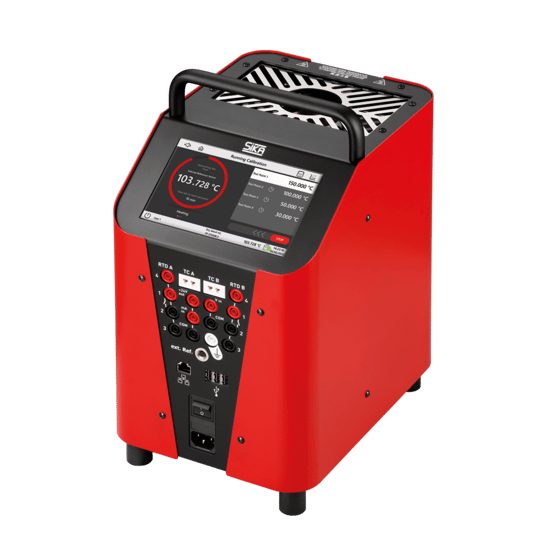

Type TP37450E.2 TP Premium Dry Block Temperature Calibrator

Brand: SIKA

Type TP37450E.2 TP Premium Dry Block Temperature Calibrator

Brand: SIKA
  • Installation, commissioning
  • Manufacturing, production
  • Maintenance, service
  •  Quality assurance, test equipment monitoring
  • Repair

Dry block function

The dry block function was developed to enable easy calibration of the temperature in the laboratory and in the field. The optimal thermal coupling from block to test object is achieved by using the right transition sleeve. Ideally, the hole in the sleeve has an inner diameter that is 0.5 mm larger than the outer diameter of the test object. Using the transition sleeve, almost all straight temperature sensors with different lengths and diameters can be calibrated. The dry block covers the entire temperature range without changing the calibration medium. The user does not have to take viscosities, flash points or outgassing into account.

Black radiator function

A patented infrared calibration sleeve is used to calibrate IR pyrometers or thermal imaging cameras. The special surface structure and the asymmetrical shapes form a "black cavity radiator" with an emission factor of 0.9994 and prevent the reflection of interference radiation and emit the desired temperature in an ideal form. The pyrometer is simply held at the prescribed distance above the measuring opening and thus forms the desired measuring spot for the calibration to be carried out on the ground. A tripod can be mounted directly.

Surface temperature function

Surface temperature sensors are calibrated using special sleeves that are placed vertically with the required contact force. The best possible temperature reference point on the surface of the sleeve is made possible by switching the calibrator control to the external reference sensor. This is located directly under the face of the sleeve. The sleeve is designed in such a way that the best temperature homogeneity is achieved in the middle of the face. Good thermal contact is made possible by the special nature of the face. The use of thermal paste or other heat transfer media is not necessary.

Accessories

The extensive range of accessories in the TP Premium series allows time-saving calibration setups. For example, test items can be identified using a barcode scanner or an ongoing or completed calibration process can be displayed on a PC or smartphone anywhere in the world via a WLAN connection. Thanks to the option of connecting an external measuring bridge directly to the calibrators, many test items can be calibrated at the same time - including automatic creation of individual factory test certificates.
Features
  • Patented control technology - time savings of up to 50%
  • Fastest stabilization times on the market
  • Patented touchscreen function
