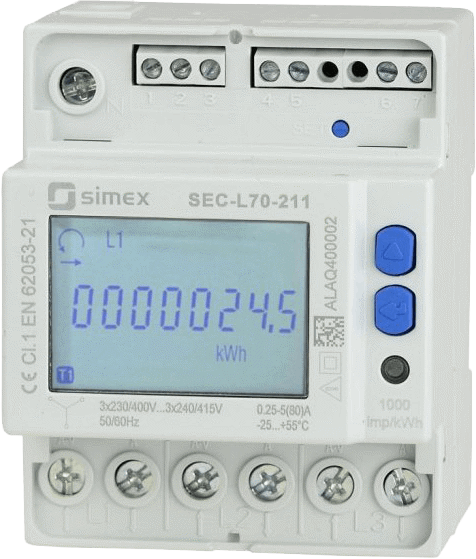

SEC-L70 Energy Counter

Brand: SIMEX sp. z o.o.

SEC-L70 Energy Counter

Brand: SIMEX sp. z o.o.
4 DIN modules energy counter SEC-L70 for the energy measurement in industrial and civilian application, with the RS-485 Modbus RTU/ASCII built-in communication.

Besides the energy, the counter can measure the main electrical parameters and makes them available on the built-in COM port.

The LCD display shows the energies and the instantaneous powers.

The COM port allows to manage the connected meter by a remote station. Data is transmitted on a RS-485 line.

The counter SEC-L70 is built according to EN 50470-1 standard.

The accuracy of the active energy fulfills class B requirements according to EN 50470-3.

The accuracy of the reactive energy is compliant to IEC/EN 62053-23 class 2.

Wide backlighted LCD display with clear graphic symbols comprehensible at a glance.

Metrological LED on front panel and sealable terminal covers.

The analysis of the MTBF values, the accurate selection of components and the reduction of the internal working temperatures together with strict production and control standards guarantee a product with an excellent quality and a long lasting
Features
  • Energy Measurement in Industrial and Civilian Applications
  • RS-485 Modbus RTU/ASCII Built-in Communication
  • Wide Backlighted LCD Display

Specifications

Input Type

  • Current: A
  • Voltage: V
  • Digital

Input Range

  • 1/5A CT
  • 80A
  • 80… 276 Vac/dc, Digital
  • 3 x 230/400...3 x 240/415 Vac

Output Type

  • Digital
  • Passive Optoisolated
  • Maximum Values: 27 Vdc / 27 mA

Display

  • Backlighted LCD

Communication Interface

  • RS-485 / Modbus RTU
  • RS-485 / ASCII

Protection Class

  • IP 20
  • IP 51: Front

Operating Temperature

  • -25...+55° C

Case Dimensions

  • 72 x 90 x 65 mm

Mounting

  • DIN Rail

Models matching criteria: 2
Input Type: 1/5A CT
Out of Stock
Input Type: 80A
Out of Stock
