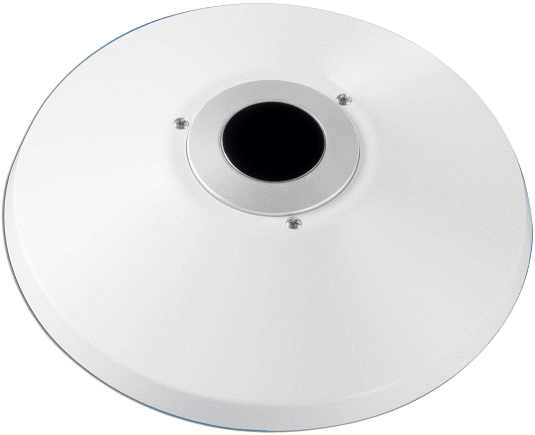

LPPIRG01 – Pyrgeometer for Far Infrared Radiation
Brand: Delta OHM S.R.L.The pyrgeometer LPPIRG01 is used to measure the far infrared radiation (FIR).
Its use is mainly in the meteorological field. Measures are referred to radiations with wavelength greater than 4.5 μm .
The far infrared radiation derives from the measure of the thermopile output signal and from the knowledge of the instrument temperature. The temperature measure is performed by a 10kΩ NTC which is inside the body of the pyrgeometer.
The pyrgeometer can be used also for the study of energy balance. In this case, besides another pyrgeometer which measures infrared radiation upwards, it is necessary to have an albedometer (LPPYRA05, LPPYRA06 or LPPYRA11) to measure short wavelengths radiation (<3μm).
Specifications
Brand
Sensor
- Thermopile
Typical Sensitivity
- 5-10 μV/(W/m2)
Impedance
- 33 Ω ÷ 45 Ω
Measuring Range
- -300 ÷ +300 W/m²
Viewing Angle
- 160°
Spectral Range (50%)
- 5.5 ÷ 45 μm
Operating Temperature
- -40° C ÷ 80° C
Output
- LPPIRG01: Analog in μV/Wm²
- LPPIRG01S: Digital RS-485 Modbus-RTU
Power Supply
- LPPIRG01S: 5 ÷ 30 Vdc
Connection
- 8-Pole M12 Connector
Weight
- 0.9 kg
Accuracy of Levelling Device
- < 0.1°
Protection Degree
- IP 67
MTBF
- > 10 years
Response Time
- < 28 seconds
Zero Offset (Type B)
- < | ± 4| W/m2
Long-Term Instability
- < | ± 1.5| %
Non-Linearity
- < | ± 1| %
Spectral Selectivity
- < | ± 5| %
Temperature Response
- < 3 %
Tilt Response
- < | ± 2| %
