SUR-94 Universal Meter
Brand: SIMEX sp. z o.o.
Images are representations only.

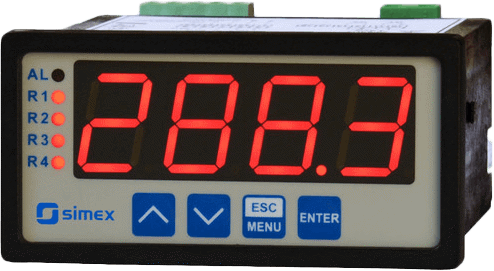

SUR-94 Universal Meter
Brand: SIMEX sp. z o.o.The SUR-94 meter is equipped with one universal input, type: 0/4-20 mA, 0-10V, 0-150 mV, Pt 100/500/1000 or TC: K, S, J, T, N, R, B, E.
During the measurement process only one kind of input is available.
Temperature of cold ends is compensated automatically.
RTD and TC inputs feature with fully linearized characteristics.
Thanks to wide range of characteristic curves: linear, square root, quadratic, user-defined and volume characteristic for cylindrical tanks, the meters may be used in various process control systems.
The 24V DC / 100 mA output is designed to supply measuring transducers, and the RS-485 port enables data transmission in production process monitoring systems.
The REL / OC control outputs can adjust the level of measured signal and are controlled according to one or two threshold values.
Moreover, the meter can be equipped with analogue outputs, according to the customer selection: active current output, passive isolated current output or active voltage output.
The meter can be configured with the local keyboard or free S-Config software via the RS-485 communication port.
Features- Meter with a Large, 20 mm High, LED Display
- Universal Input: 0/4-20 mA, 0-10V, 0-150 mV, RTD or TC
- 0, 2 or 4 REL / OC Outputs
- Analogue Output: Active or Passive, Power Supply Output: 24V DC
- RS-485 / Modbus RTU
- Signal Peak Value Detection
- Free Configuration Software S-Config
Specifications
Brand
Type of Outputs
- No Output
- 2 x REL
- 2 x OC
- 2 x REL + 1 x AO: 0/4-20 mA, Active, Non-Isolated
- 2 x OC + 1 x AO: 0/4-20 mA, Active, Non-Isolated
- 2 x REL + 1 x AO: 4-20 mA, Passive, Isolated
- 2 x OC + 1 x AO: 4-20 mA, Passive, Isolated
- 2 x REL + 1 x AO: 0/1-5 V, 0/2-10 V, Active, Non-Isolated
- 2 x OC + 1 x AO: 0/1-5 V, 0/2-10 V, Active, Non-Isolated
- 4 x REL
- 4 x OC
Power Supply
- 24 Vac/dc
- 85 V ÷ 260 Vac/dc
- 12 Vac/dc
Options
- No Options
- Integrated Frame for Panel Cut-out Sealing
- Green Colour LED Display
- Integrated Frame for Panel Cut-out Sealing + Green Colour LED Display
- Operating Temperature -20° C ÷ +50° C
- Integrated Frame for Panel Cut-out Sealing + Operating Temperature -20° C ÷ +50° C
- Green Colour LED Display + Operating Temperature -20° C ÷ +50° C
- Integrated Frame for Panel Cut-out Sealing + Green Colour LED Display + Operating Temperature -20° C ÷ +50° C
