TP32 Soil Temperature Probe

Brand: Delta OHM S.R.L.

TP32 Soil Temperature Probe

Brand: Delta OHM S.R.L.
The TP32MTT.03.A/B/C temperature probes measure the air and/or soil temperature by means of a 4-wire Pt100 sensor.

They are provided with a protective screen which allows to detect the temperature without that the measurement is influenced by solar radiation.

The position of the sensor inside the screen is such as to prevent it from being invested by radiation.

The screen is made of UV-resistant ASA technopolymer, with low thermal conductivity and high reflection.

There are single probes available, for the measurement of only air or soil temperature, and a double probe for simultaneous measurement of the air and soil temperature.

The probes TP32MTT.03.A and TP 32MTT.03.B are fixed by means of a metal spike to be driven into the ground.

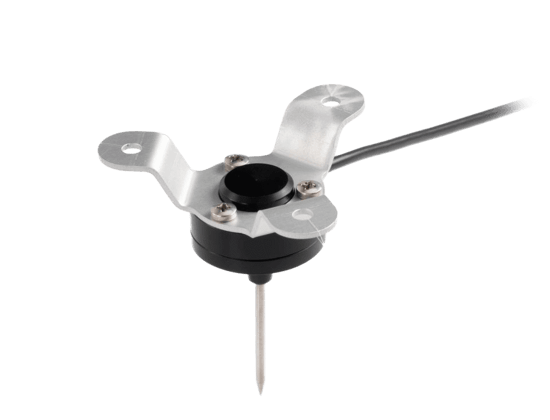

The probe TP32MTT.03.C is attached to a bracket made of Anticorodal aluminium, powder coated, white. Length of the cable 2, 5 or 10 m. The cable is terminated with open wires.

Specifications

Sensor

  • 4-wire Pt100

Class

  • 1/3 DIN

Working Temperature

  • -40° C to 85° C

Connections

  • 2, 5 or 10 m cable terminating with open wires
  • 8-Pole cable for TP32MTT.03.B
  • 4-Pole cable for TP32MTT.03.A and TP32MTT.03.C

IP Protection

  • IP67

Models matching criteria: 11
4-wire Pt100 temperature probe for measuring the soil temperature. Cable Length: 10m
Out of Stock
4-wire Pt100 temperature probe for measuring the soil temperature. Cable Length: 2m
Out of Stock
4-wire Pt100 temperature probe for measuring the soil temperature. Cable Length: 5m
Out of Stock
4-wire Pt100 temperature probe for measuring the soil and air temperature. Cable Length: 10m
Out of Stock
4-wire Pt100 temperature probe for measuring the soil and air temperature. Cable Length: 2m
Out of Stock
4-wire Pt100 temperature probe for measuring the soil and air temperature. Cable Length: 5m
Out of Stock
4-wire Pt100 temperature probe for measuring the air temperature. Cable Length: 10m
Out of Stock
4-wire Pt100 temperature probe for measuring the air temperature. Cable Length: 2m
Out of Stock
4-wire Pt100 temperature probe for measuring the air temperature. Cable Length: 5m
Out of Stock
Accessory to perform in the soil to insert the probe
Out of Stock
Accessory for signaling the presence of the probe
Out of Stock
