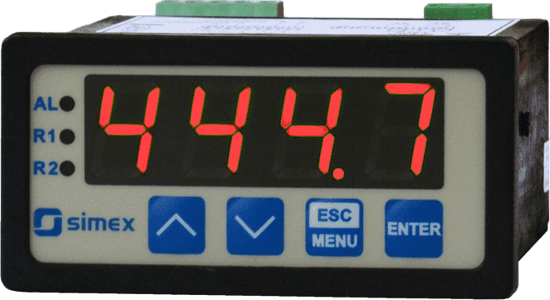

SZP-73 Process Meter
Brand: SIMEX sp. z o.o.
Images are representations only.
SZP-73 Process Meter
Brand: SIMEX sp. z o.o.The SW-BCD-94 indicator can be used as the indicator output for PLCs to display data in the binary, bcd or byte format or to show typical information transmitted over the RS-485 interface.
Depending on the parameter settings, the indicator can display:
- Digits: 0 - 9, with programmable decimal point
- Binary Data: 0 - 9, A - F, showing the statuses of e.g. the address lines, data lines, etc.
- Various messages and text which can be created on the 7-segment digital displays
The meter can be configured with the local keyboard or free S-Config software via the RS-485 communication port.
Features- Regulated Current Source in a Small Case
- Two-coloured LED Display: 4-digits, IP 40
- Passive Output 4-20 mA with Galvanic Separation
- Power Supply Output: 24V DC
- RS-485 / Modbus RTU
- Changing the Current Values by "^" and "v" Keys
- Free Configuration Software S-Config
Specifications
Brand
Input Type
- No Input
Output Type
- 4-20 mA
Power Supply
- 16-35 Vac, 19-50 Vdc
- 85-260 Vac/dc
Display
- LED, 4 x 13 mm, two-coloured
- LED, 5 x 9 mm, red
Communication Interface
- RS-485 / Modbus RTU
Transmission Parameters
- 1200 to 115200 bit/s
- 8N1 / 8N2
Operating Temperature
- 0° to +50° C
- -20° to +50° C
Protection Class
- IP 20: Case and Connection Clips
- Optional Integrated Frame for Panel Cut-out Sealing
- IP 65: Front
- IP 40: Front
Case Material
- NORYL-GFN2S E1
Mounting
- Panel
Case Dimensions
- 72 x 36 x 97 mm
