PTX23 Submersible Level/Pressure Transmitter
Brand: Status Instruments
Images are representations only.

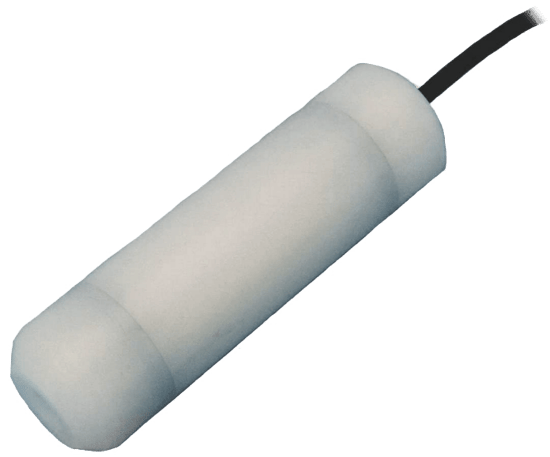

PTX23 Submersible Level/Pressure Transmitter
Brand: Status InstrumentsThe PTX23 pressure transmitter is a high accuracy, robust, 2-Wire (4-20 mA) current output pressure sensing device designed to withstand immersion in most aggressive chemicals.
It is an assembly containing a piezoresistive element, oil filled and sealed in a PVDF case with a choice of PUR or PTFE cable to any length required.
The PTX23 is ideal for applications measuring depth and levels in aggressive fluids, chemicals and waste water.
Ranges are to DIN standard (in ratios of 1, 1.6, 2.5, 4, 6) e.g 100, 160, 250, 400, 600 mbars and 1, 1.6 bars etc. up to 25 bar with custom calibrations available to all pressure measurement units.
Specifications
Brand
Accuracy
- ≤ ± 0.5 % of Full Scale (> 2 bar)
- ≤ ± 1 % of Full Scale (≤ 2 bar)
- ≤ ± 2 % of Full Scale (< 500 Mbar)
Applications
- Aggressive Fluids & Chemicals
- Wastewater
- Water Depth Measurements Systems
Burst Pressure
- psi: 0 to 2,900 (kPa: 0 to 20,000, bar: 0 to 200)
Cable Material
- Polyurethane
- PTFE
- Teflon
Diaphragm Material
- 316L Stainless Steel
- Teflon Coated
Electrical Protection
- Lightning Protection
Enclosure, Body Material
- PVDF
Media
- Corrosive
Operating Temperature
- Optional: -25° to 85° C (-13° to 185° F)
- Standard: 0° to 70° C (32° to 158° F)
Output
- 4-20 mA, 2-Wire
Overpressure & Static Pressure Limits
- 3 x Full Scale for psi: 29.01 to 362.6 (kPa: 200 to 2,500, bar: 2 to 25)
Pressure Range
- bar: 0 to 25
- kPa: 0 to 2,500
- psi: 0 to 362.6
Pressure Type
- Gauge
Seat / Seal Material
- Viton
Sensor, Probe Type
- Piezoresistive
Supply Voltage
- 9-33 Vdc, Voltage Influence > 0.1 % of Full Scale
Temperature Range
- Extended: -5° to 80° C (23° to 176° F)
- PUR - Max.
- Standard: -5° to 50° C (23° to 122° F)
