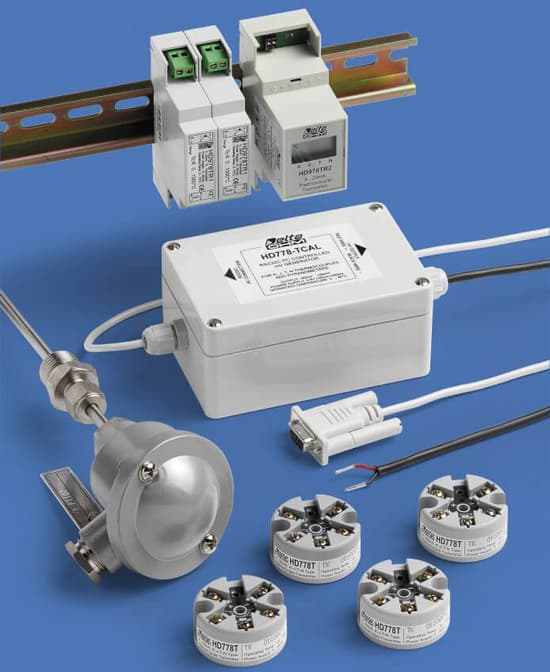

Images are representations only.

HD788TR1-I – Opto Insulated Temperature Transmitter

Brand: Delta OHM S.R.L.
Favorite
Configurable opto insulated temperature transmitter with 4…20 mA output. Measuring range -200°C…+650°C, minimum range 25°C.

Standard configuration 0..100°C. 2 or 3 wires Pt100 sensor.

Electronics operating temperature -20…+70 °C.

Assembled in a round container with dimensions and connections in accordance with DIN 43760, ∅ 43 x h. 22.5 mm.

Minimum quantity: 5 pcs per order.

Specifications

Brand

Sensor

  • Pt100 (100 Ω at 0° C)

Connection

  • 3 (or 2) wires

Linearization

  • EN 60751, IEC 751
  • BS 1904 (α=0.00385)

Current into Sensor

  • < 1 mA

Measuring Range

  • -200…+650° C

Default Range

  • 0…100° C

Minimum Measuring Range

  • 25° C

Influence of the Connecting Leads

  • Negligible with coupled lead

Conversion Speed

  • 2 measurements per second

Accuracy

  • ± 0.1° C ± 0.1 % of the reading (-100…+500° C)
  • ± 0.2° C ± 0.02 % of the reading (-200…+650° C)

Sensibility to Variations of Env. Temperature

  • 0.01° C/°C

Electronics Operating Temperature

  • -20…70° C

Storage Temperature

  • -40…+80° C

Output

  • 4…20 mA (or 20…4 mA)
  • 22 mA in case of incorrect programming or temperature out of range

Resolution

  • 4 µA
  • For HD988TR2 - Display: 0.1° C up to 200° C, 1° C over 200° C

Power Supply Voltage

  • 7…30 Vdc (protection against inversions of polarity

Sensibility to Variations of the Feeding Voltage Vcc

  • 0.4 µA/V

Load Resistance

  • RLMax. = Vdc-7/0.022 = > RLMax. = 770 Ω @ Vdc = 24 Vdc

Red Led

  • It switches on while programming and when the measured temperature is out of the set range

Input-Output Isolation for Models HD788TR1-I and HD988TR1-I

  • 500 Vdc
  • Only for models HD788TR1-I and HD988TR1-I
